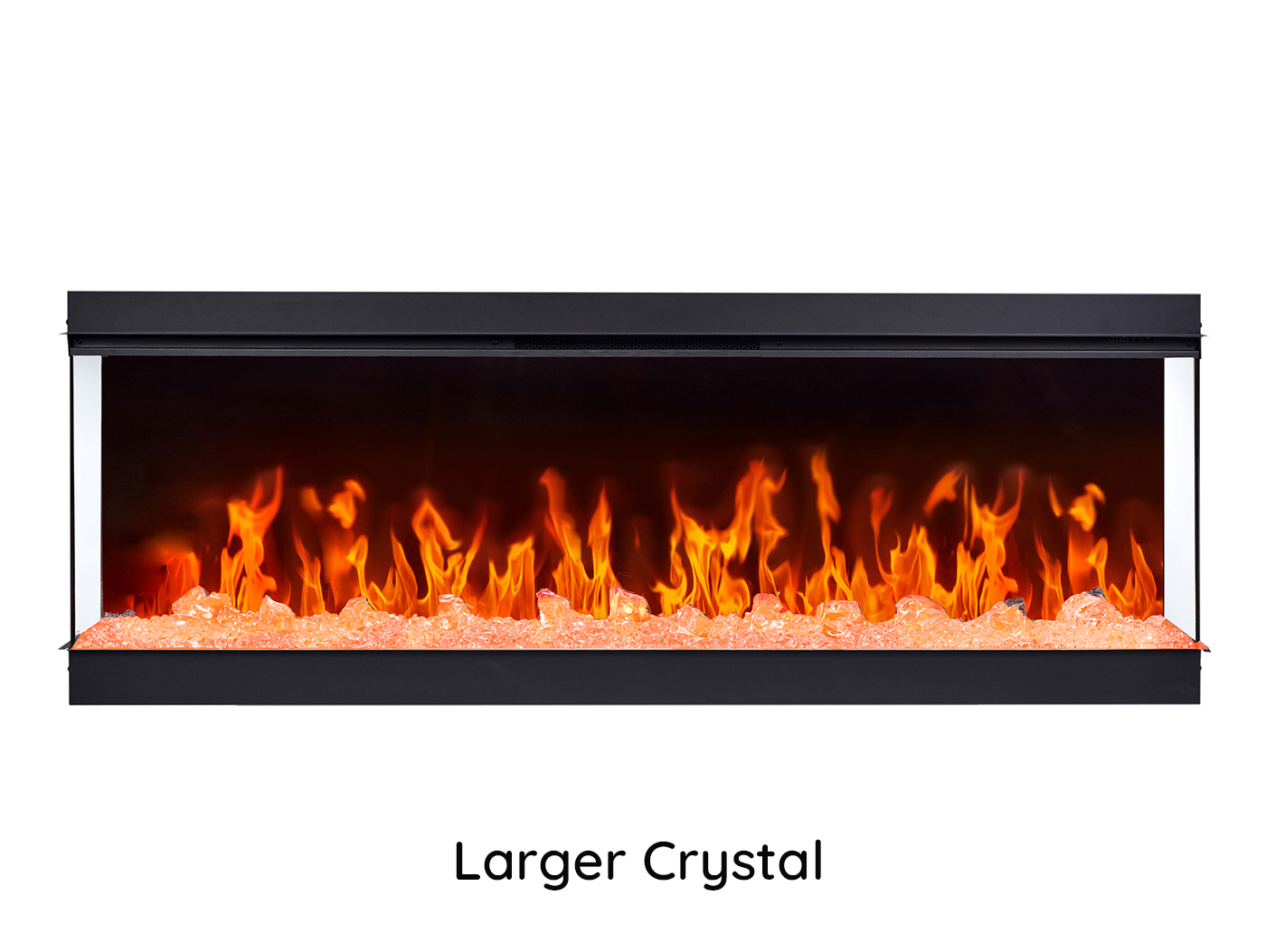

SpectrumRGB Series Multi Side Built In Linear Fireplaces

SpectrumRGB Series Multi Side Built In Linear Fireplaces

ELECTRIC FIREPLACES > LINEAR SERIES

 •Multiple view electric fireplaces keep your home warmer, increase efficiency, and reduce the amount of wasted energy.

 •Front venting holes, the middle area is the air outlet for heating other for the air inlet.

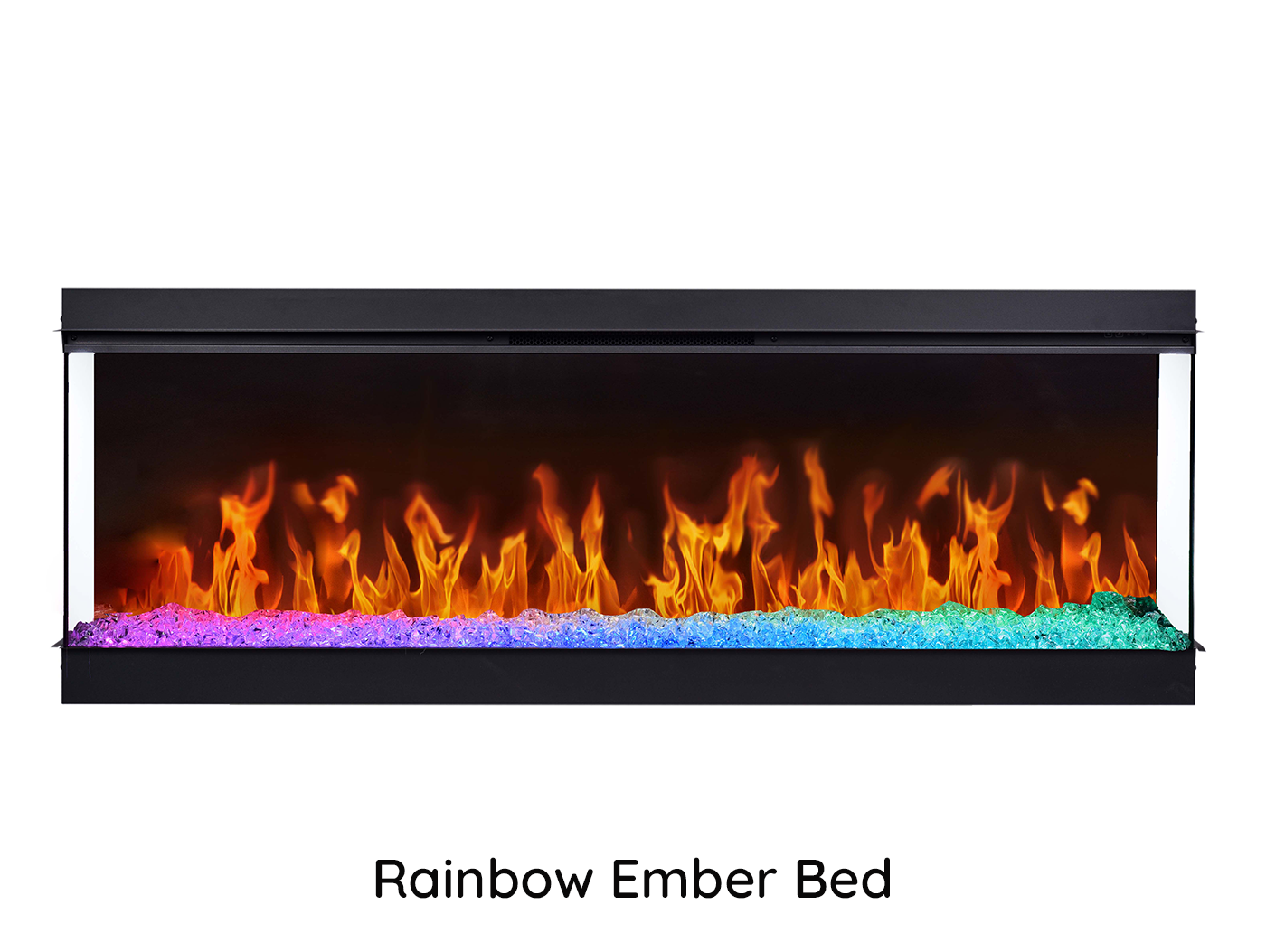

 •New high intensity multi-color flame technolody paired with matching up lighting and down lighting create the full customizable experience in the home.

DIMENSIONS



SpectrumRGB Series Key Features
Multi- side linear electric fireplace
Front Venting Built in
All season usage: flames operate with or without heat output
Main Dimensions
Depth with front glass12"
Back Firebox depth12"
Front Width50"/ 60"/ 72"
Front Height22.5" for 50"/ 60"/ 72"
Ember bed depth8 1/5"
View area height15 3/4 " for  50"/ 60"/ 72"
View area width50"/ 60"/ 72"



PRODUCT DIMENSIONS
Model#ABCDD1D2EE1E2E3
SS50FV3FBL50''15.75"51.01''12''11.56''8.45''22.5''2.33"1.21"3.18"
SS60FV3FBL60''15.75"61.01''12''11.56''8.45''22.5''2.33"1.21"3.18"
SS72FV3FBL72''15.75"73.01''12''11.56''8.45''22.5''2.33"1.21"3.18"


Fireplace Type:

Multi-View
Available Models: 50, 60, 72
Depth:

12” including the front glass

12” firebox


SPECIFICATIONS



Technical Specification

Product Finish

Black

Wattage

1500W

Voltage

120V

BTU

5000

Product Depth

12"

Product Height

22.5"

Product Weight

104.12

Timer

1

Remote Control

Yes

Control ButtonYes

Built-in Thermostat

Yes

Automatic Shut-off

Yes

Power Souce

Electric

INSTALLATION

DEC 12 update_Page_12.png

DEC 12 update_Page_17.png

DEC 12 update_Page_10.png

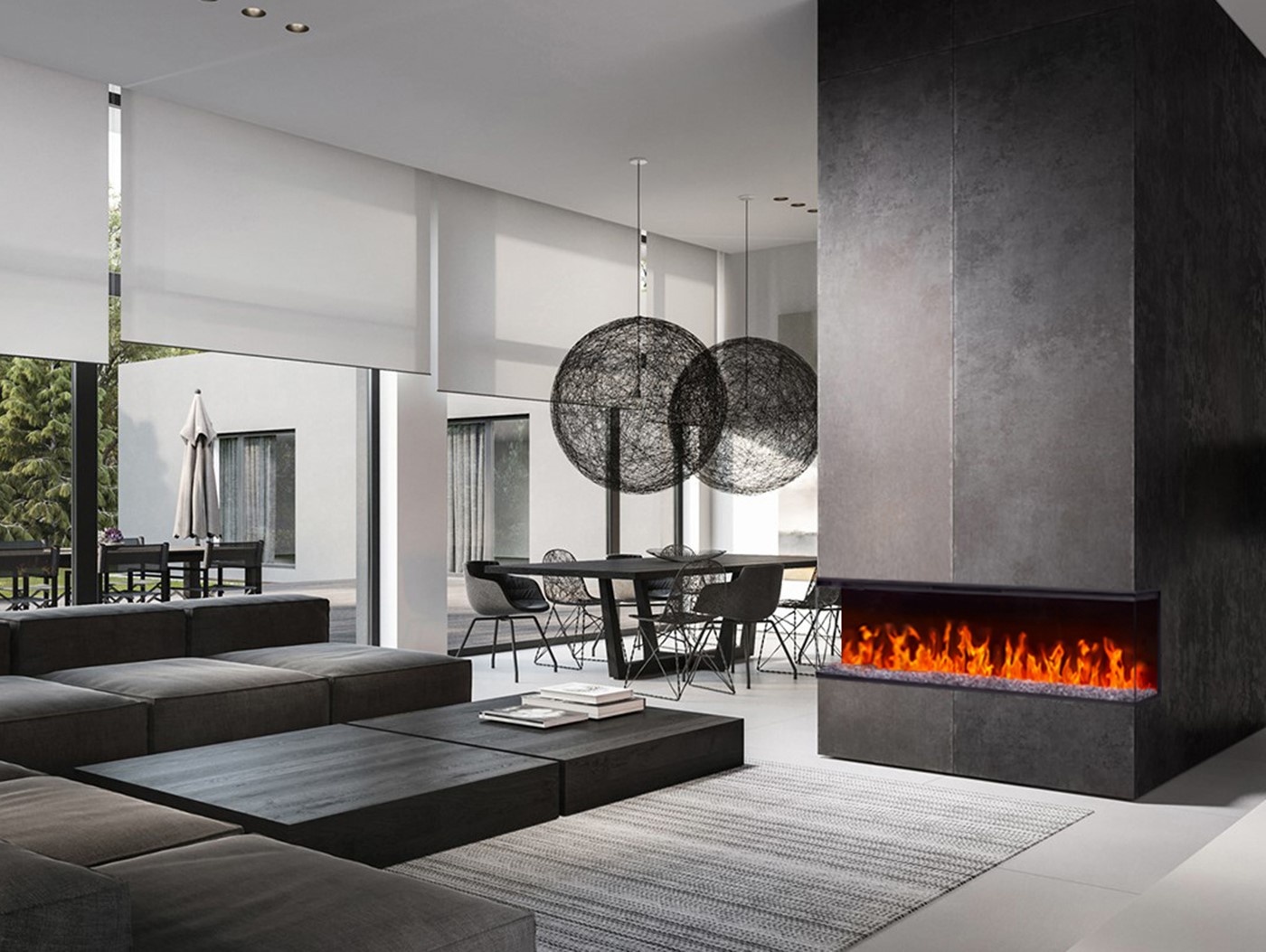

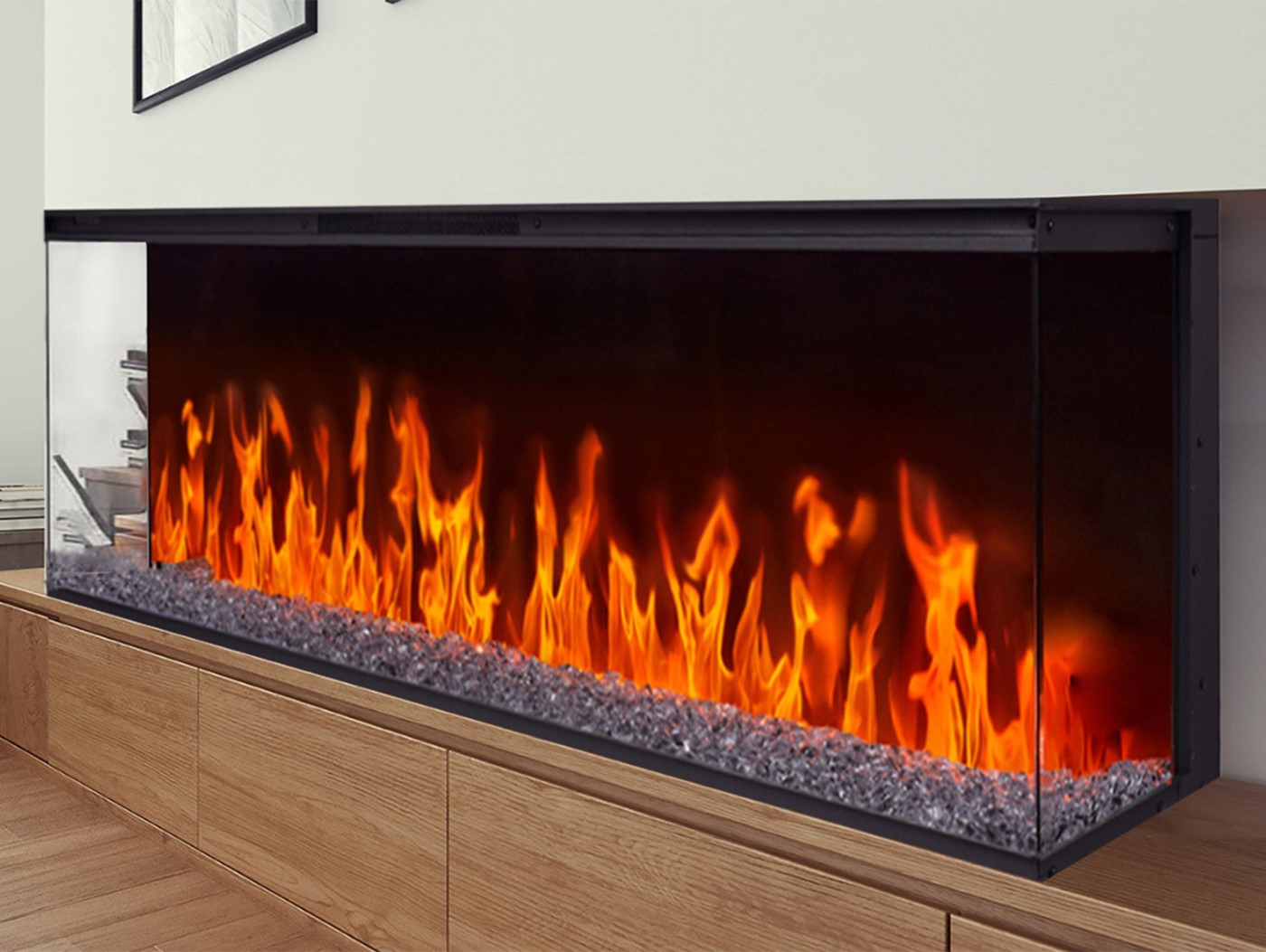

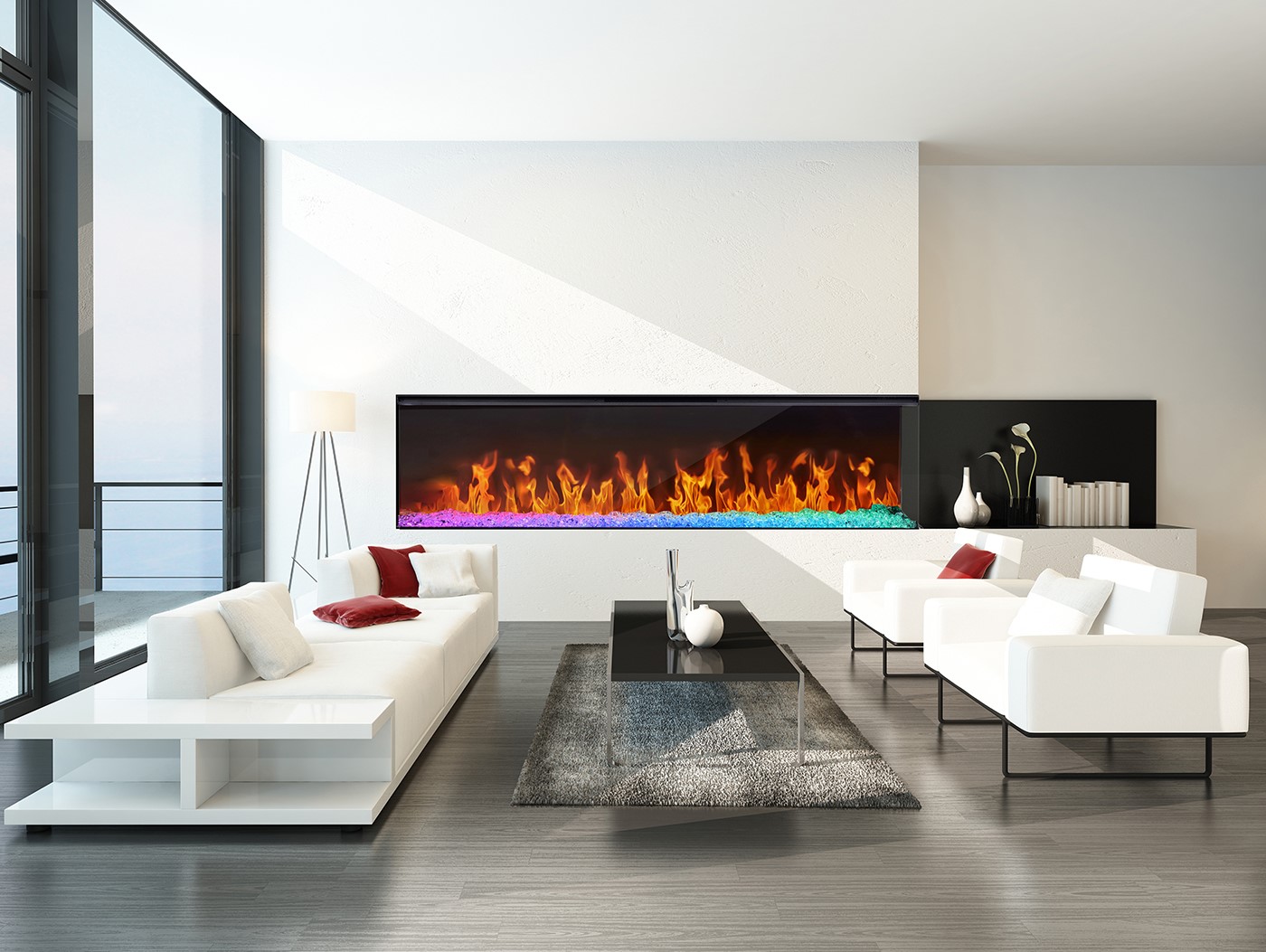

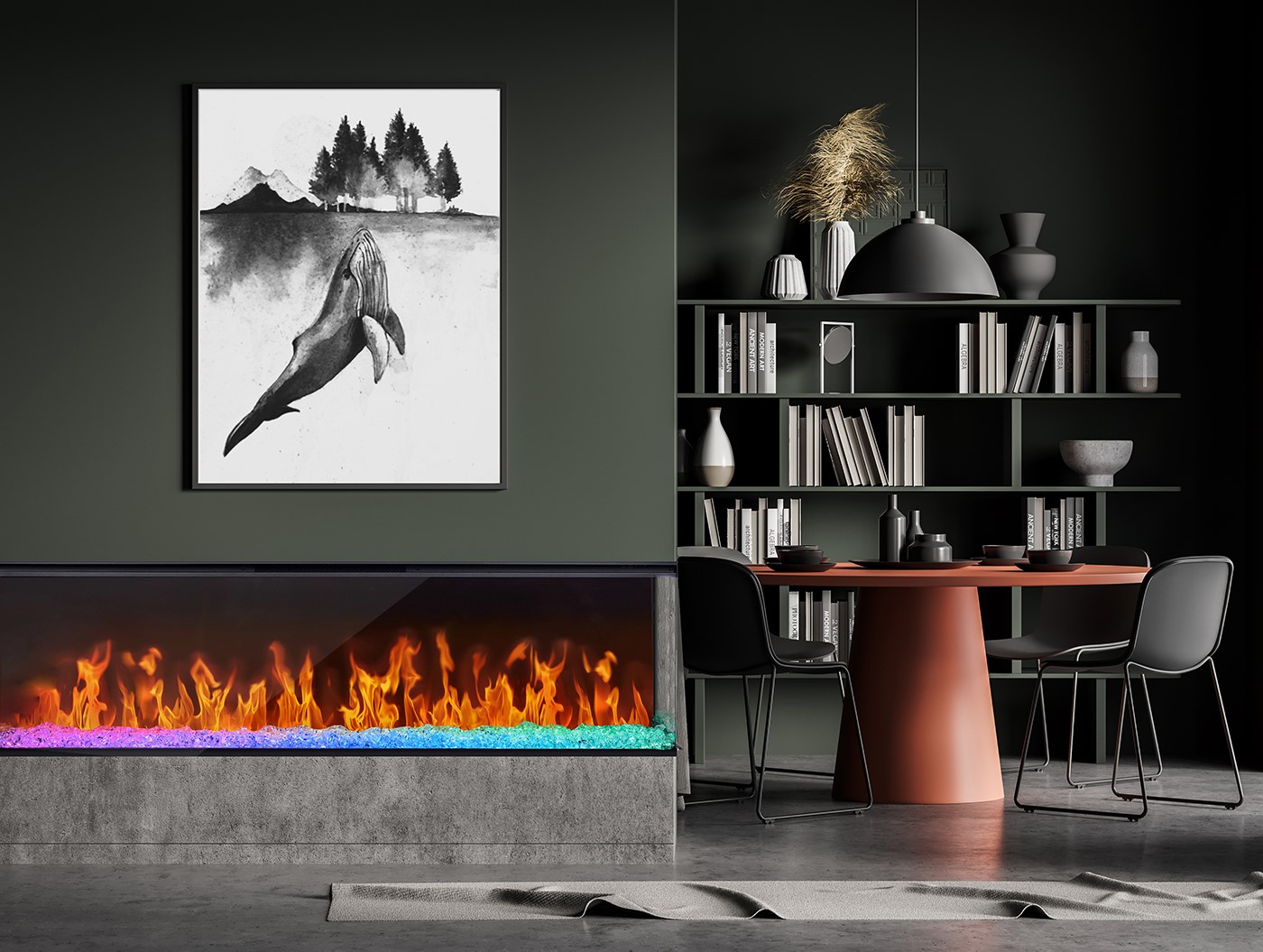

5 install options:

1. Built-in ( 3 side)

2. Built-in ( Clean face)

3. Built-in ( Corner: Left or right)

4. Built-in half recessed

5. Wall mount ( Special order wall mount cabinet)

INSTALLATION
YESRecess Wall Mount only 0.2' from the wall
YESWall hanging
YESBuilt in Clean face
ELECTRICAL
Heater

1500W/5000BTU

Up to 10,000BTU's &3,000 Watts
Heater wire option

Yes
Plug in

Yes



Special order:

Floating cabinet installation. Wall mounted.


It is recommended that the walls for the appliance enclosure be finish (ie. drywall) to avoid exposed insulation or vapour barriers coming in contact with the appliance. This will ensure clearance to combutible is maintained.







MINIMUM CLEARANCE:

Keep drapery and other furnishings at least 3ft/ 0.9m from the front of the electrical fireplace.


FRONTBACKSIDETOPBOTTOM
36" / 0.9m 0"0"0"0"
