ELECTRIC FIREPLACES > LINEAR SERIES

 •Top venting electric fireplaces keep your home warmer, increase efficiency, and reduce the amount of wasted energy.

 •Total is two venting holes, the top one is the air outlet for heating other for the air inlet.

 •There is 3 color model for your option, black color brings a sense of elegant style to your space; white color is easy to match with your light color furniture; red color can quickly catch people’s eyes

DIMENSIONS



Astro Series Key Features
See through linear electric fireplace
Hidden venting bulit in
All season usage: flames operate with or without heat output
Main Dimensions
Depth with front glass9.2"
Back Firebox depth8"
Front Width50"/ 60"/ 72"
Front Height20.8" for 50"/ 60"/ 72"
Ember bed depth3"
View area height13 1/2 " for 50"/ 60"/ 72"
View area width43.75"/ 53.75"/ 65.75"



PRODUCT DIMENSIONS
Model#ABCDEFG
SS36FV3FBL36''20''4.2''18.8''30.10'''9.72''26''
SS42FV3FBL42''20''4.2''18.8''36.10''9.72''31.97''
SS50FV3FBL50''20''4.2''18.8''44.10''9.72''39.72''
SS60FV3FBL60''20''4.2''18.8''54.10''9.72''50''
SS72FV3FBL72''23.25''4.2''20.27''66.10''10.24''60''
SS84FV3FBL84''23.25''4.2''20.27''77.10''10.24''72''


Fireplace Type:

See- Through

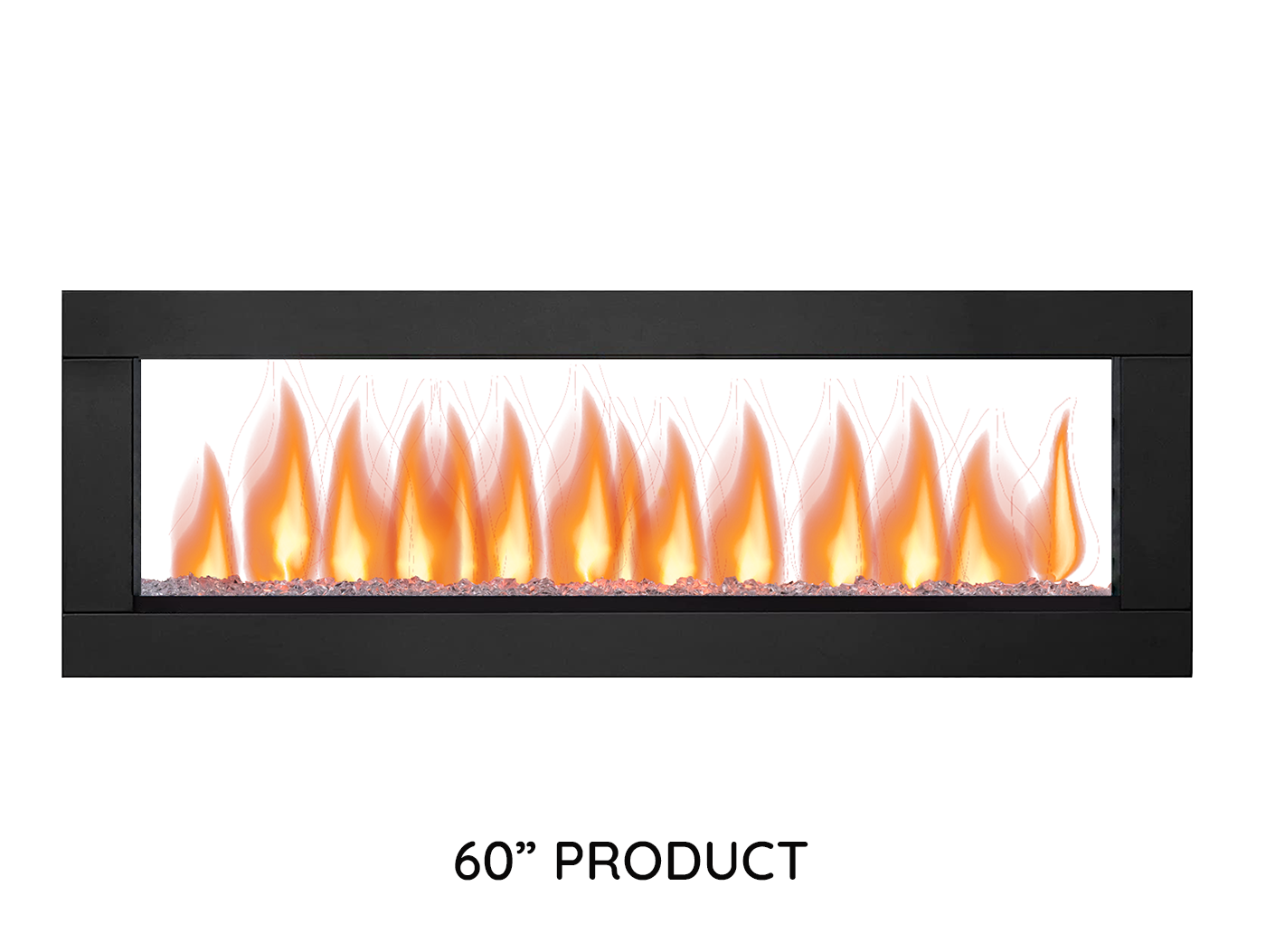

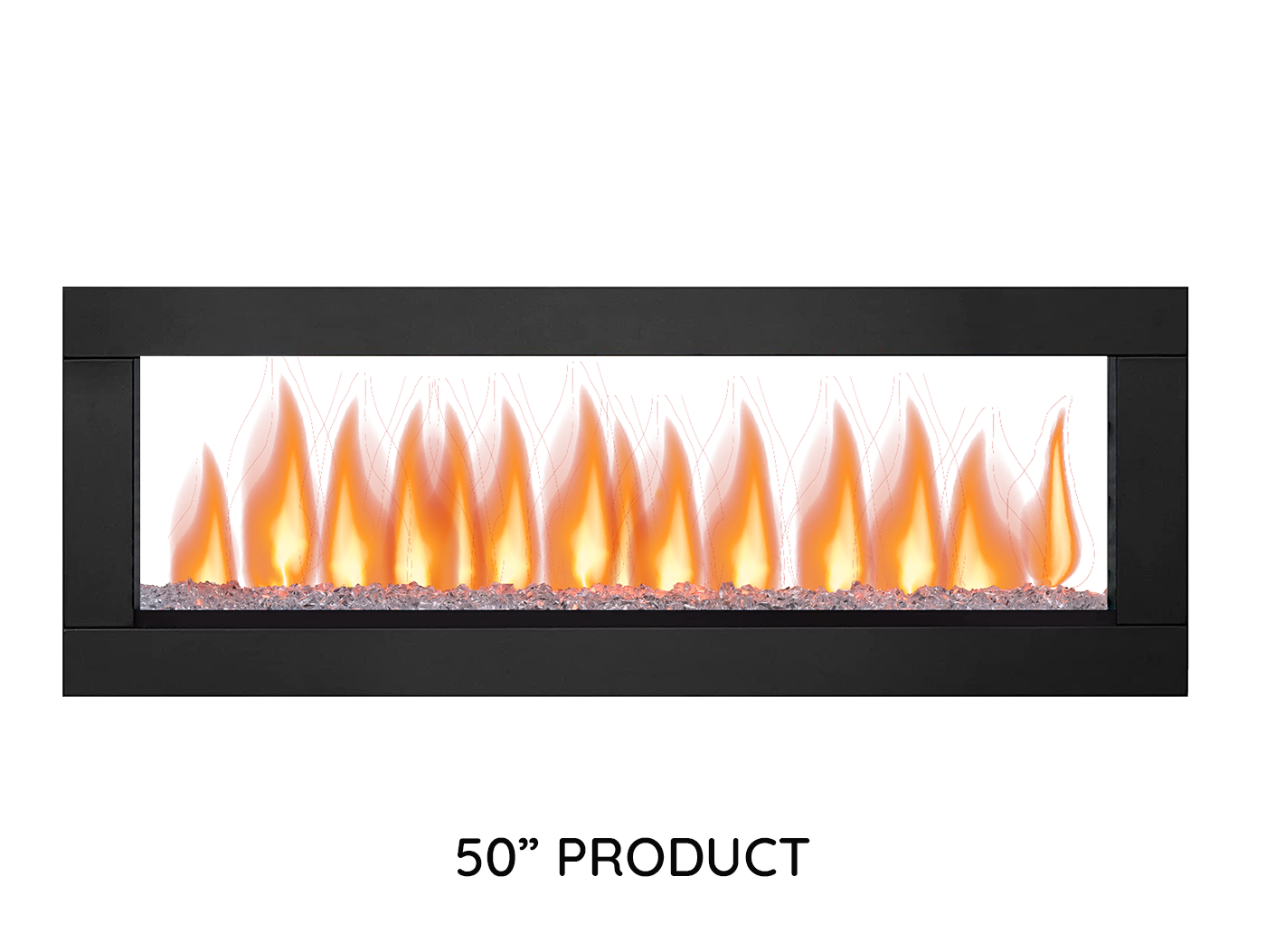

Available Models: 50, 60, 72
Depth:

9.2” including the front glass

8” firebox


SPECIFICATIONS


Technical Specification

Product Finish

Black

Wattage

1500W

Voltage

120V

BTU

5000

Product Depth

9.2"

Product Height

20.8"

Product Weight

104.12

Timer

1

Remote Control

Yes

Built-in Thermostat

Yes

Automatic Shut-off

Yes

Power Souce

Electric

INSTALLATION


installation 3.png

installation 2.png

Easy-to-use builder's brackets provided for 3 install options:

1.Wall Mounted: Use with backlights

2.Partial Recess:1"gap for flexible use

3.Full Recess:Flush to wall

INSTALLATION
YESRecess Wall Mount only 0.2' from the wall
YESWall hanging

Built in Clean face
ELECTRICAL
Heater

1500W/5000BTU

Up to 10,000BTU's &3,000 Watts
Heater wire option

Yes
Plug in

Yes



Easy-to-use builder's brackets provided for 3 install options:

1. Wall Mounted: Use with backlights

2.Partial Recess:1"gap for flexible use

3.Full Recess:Flush to wall


Item#AB
SS36FV3f8L19.3''32.60''
SS42FV3f8L19.3''38.60''
SS50FV3f8L19.3''46.60''
SS60FV3f8L19.3''56.60''
SS72FV3f8L21.27''68.60''
SS84FV3f8L21.27''79.60''
