ArcFlame Series Invisible Venting Built In Linear Fireplaces
ELECTRIC FIREPLACES > LINEAR SERIES
•Hidden venting electric fireplaces keep your home warmer, increase efficiency, and reduce the amount of wasted energy.
•Hidden venting is the air outlet for heating other for the air inlet.

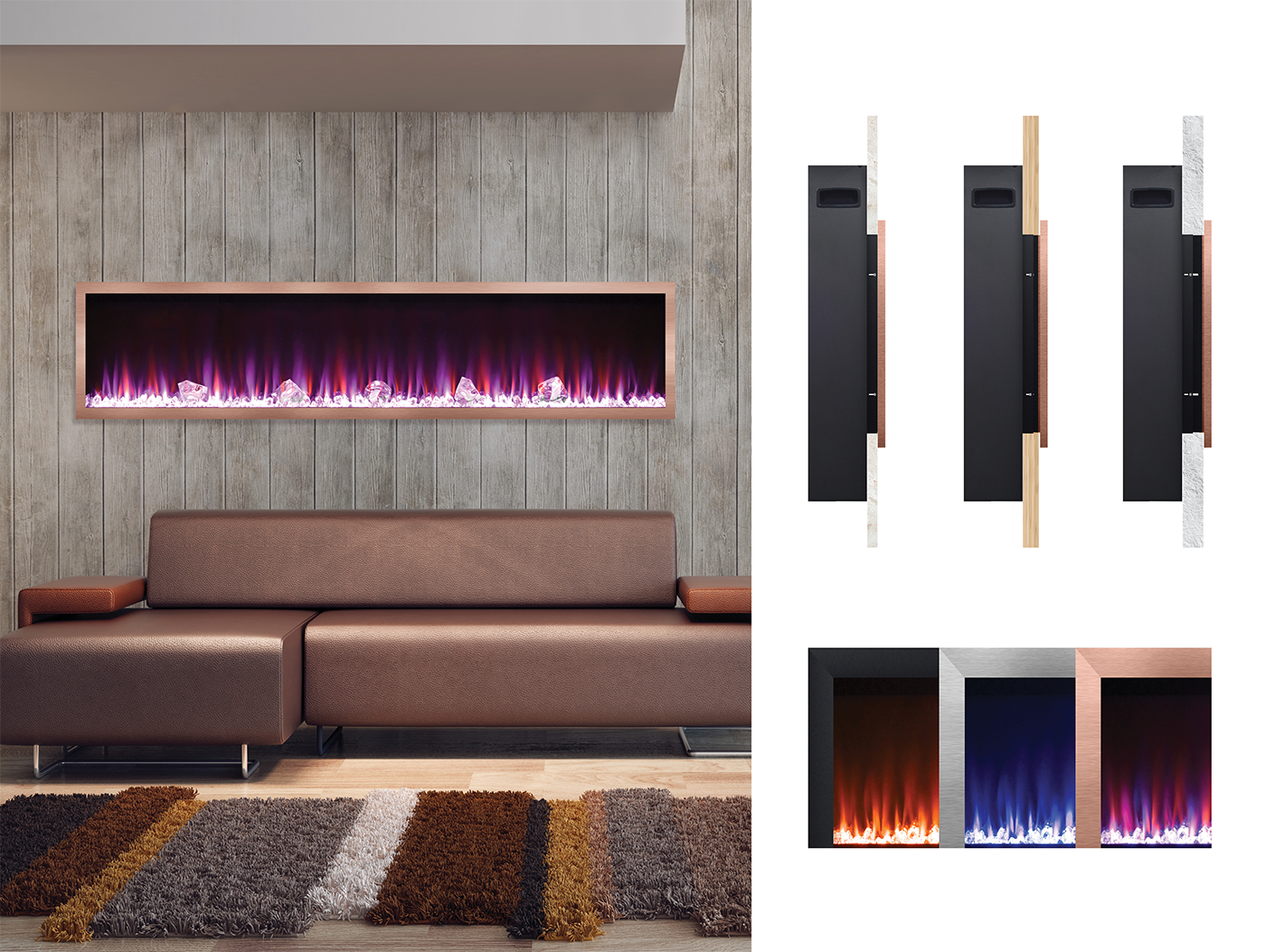

•There is 4 color model for your option, Golden color brings a sense of elegant style to your space; Silver color is easy to match with your light color furniture; Rose gold color can quickly catch people’s eyes; regular black color suitable any type furnitures.
DIMENSIONS
| ArcFlame Series Key Features | |
| Super deep hidden venting linear electirc fireplaecs | |
| Built In | |
| All season usage: flames operate with or without heat output | |
| Main Dimensions | |
| Depth with front glass | 6.5" |
| Back Firebox width | 53.5"/ 63.5"/ 75.5"/ 91.5" |
| Back Firebox depth | 6" |
| Back Firebox height | 20" |
| Front Width | 50"/60"/72"/88" |
| Front Height | 20" |
| Ember bed depth | 3" |
| View area height | 12" |
| View area width | 50"/60"/72"/88" |
| PRODUCT DIMENSIONS | ||||||||||
| Model# | A | B | C | D | E | F | G | H | I | J |
| SS50FV3FBL | 53.5'' | 20'' | 6'' | 50'' | 12'' | 15'' | 53'' | 1.5'' | 1.5'' | 0.5'' |
| SS60FV3FBL | 63.5'' | 20'' | 6'' | 60'' | 12'' | 15'' | 63'' | 1.5'' | 1.5'' | 0.5'' |
| SS72FV3FBL | 75.5'' | 20'' | 6'' | 72'' | 12'' | 15'' | 75'' | 1.5'' | 1.5'' | 0.5'' |
| SS88FV3FBL | 91.5'' | 20'' | 6'' | 88'' | 12'' | 15'' | 91'' | 1.5'' | 1.5'' | 0.5'' |
Fireplace Type: | Built-In |
| Available Models: | 50, 60, 72, 88 |
| Depth: | 6.5” including the front glass 6” firebox |
SPECIFICATIONS
Technical Specification | |
Product Finish | Black |
Wattage | 1500W |
Voltage | 120V |
BTU | 5000 |
Product Depth | 6" |
Product Height | 20" |
Product Weight | 104.12 |
Timer | 1 |
Remote Control | Yes |
Built-in Thermostat | Yes |
Automatic Shut-off | Yes |
Power Souce | Electric |
INSTALLATION
Easy-to-use builder's brackets provided for 3 install options:
1. Wall Mounted: Easy installation and front maintenance
2. Full Recess: Exchangeable and front maintenance
3. Full Recess with flexible retrun extension kit: Extension kit that supports 0.5" to 2.48" dry wall or tile wall
| INSTALLATION | |
| YES | Recess Wall Mount only 0.2' from the wall |
| YES | Wall hanging |
| YES | Built in Clean face |
| ELECTRICAL | |
| Heater | 1500W/5000BTU |
| Up to 10,000BTU's &3,000 Watts | |
| Heater wire option | Yes |
| Plug in | Yes |
MINIMUM CLEARANCE:
Keep drapery and other furnishings at least 3ft/ 0.9m from the front of the electrical fireplace.
NOTICE:
A’, B’, and C’ are the suggested opening dimensions for installing the firebox into the frame wall. Dimensions are subject to the constructor’s final confirmation.
| Item# | A' | B' | C' |
| SS50FV3f8L | 54.4'' | 21'' | 7'' |
| SS60FV3f8L | 64.4'' | 21'' | 7'' |
| SS72FV3f8L | 76.4'' | 21'' | 7'' |
| SS88FV3f8L | 92.4'' | 21'' | 7'' |
