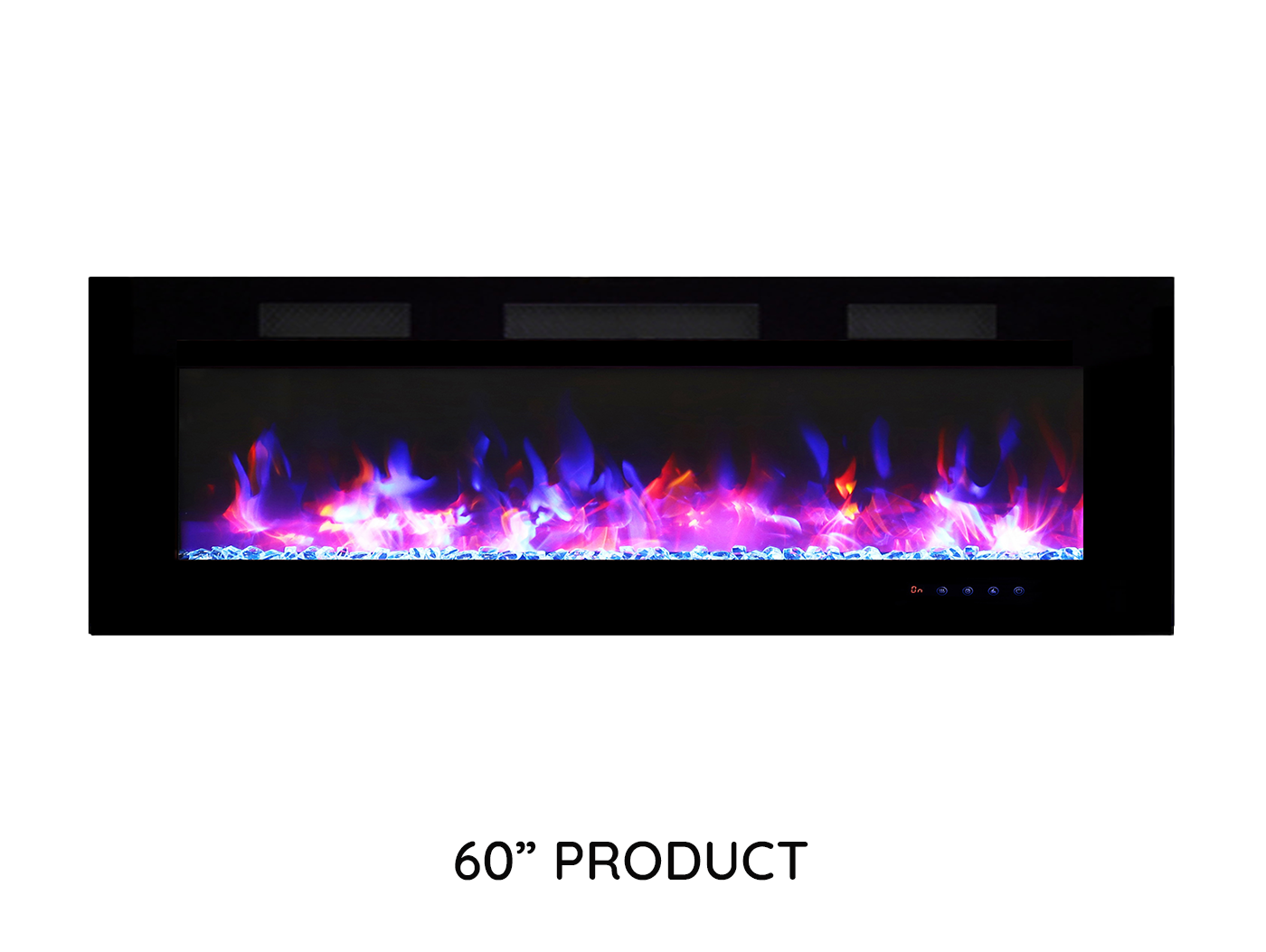

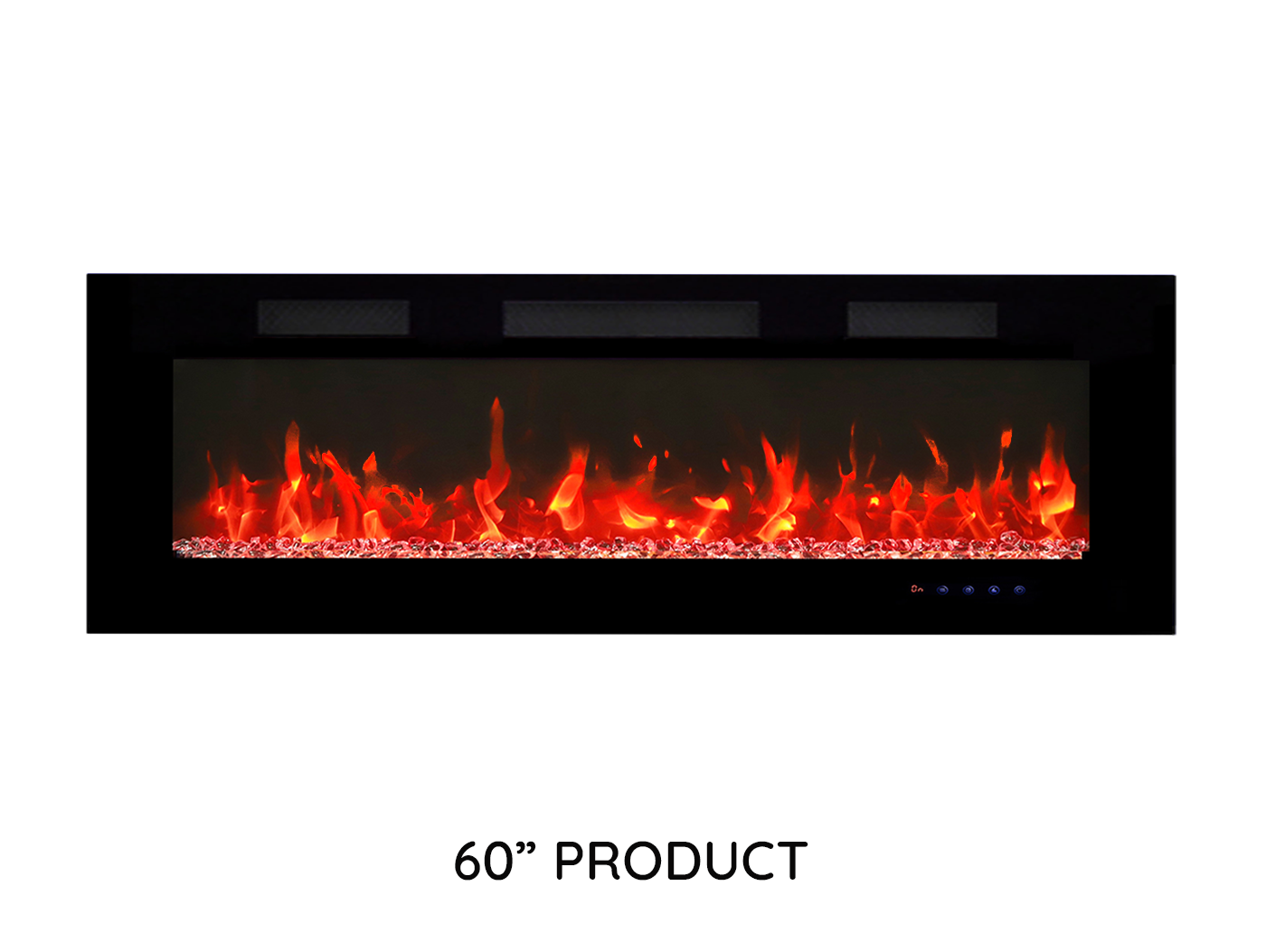

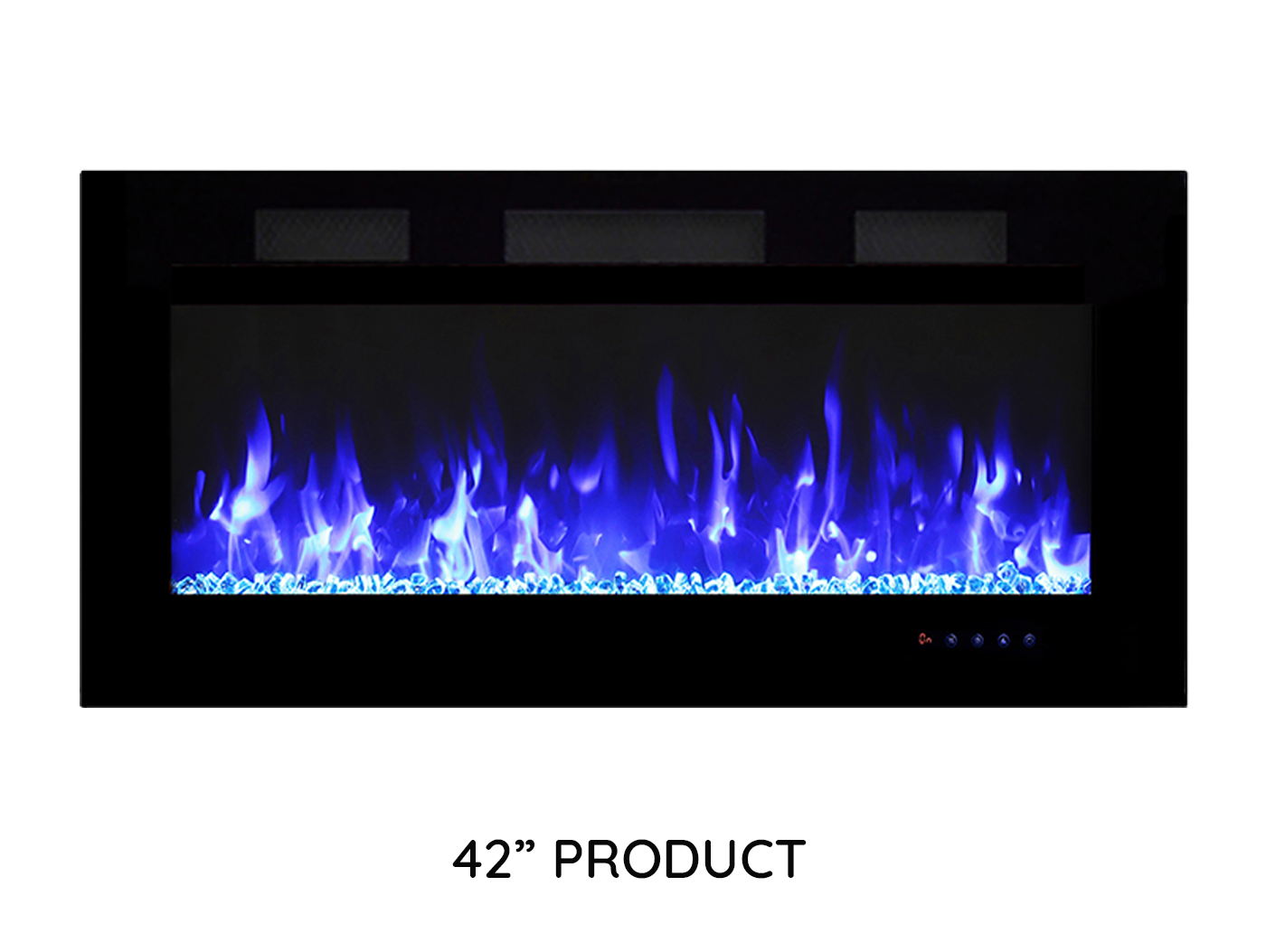

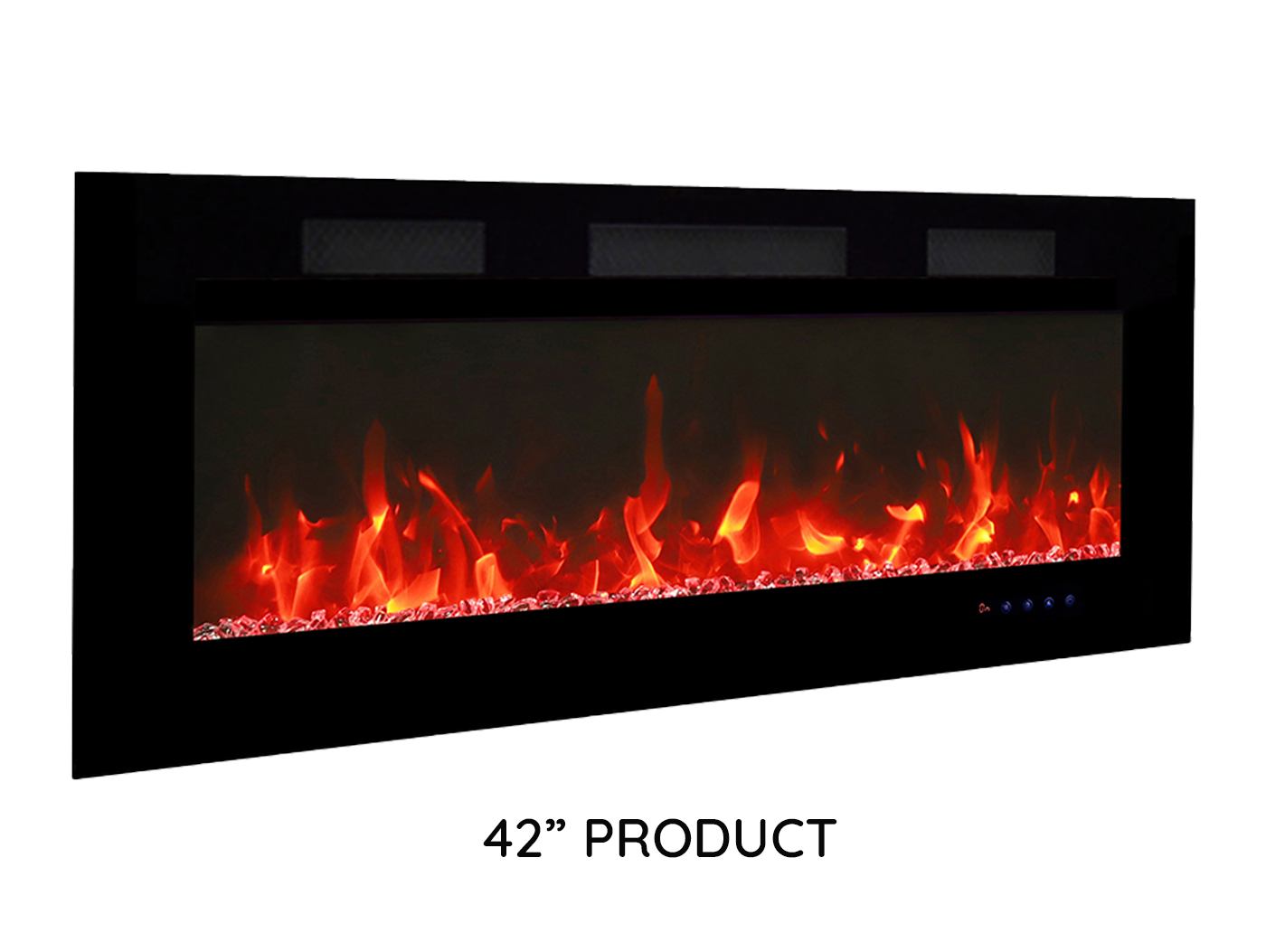

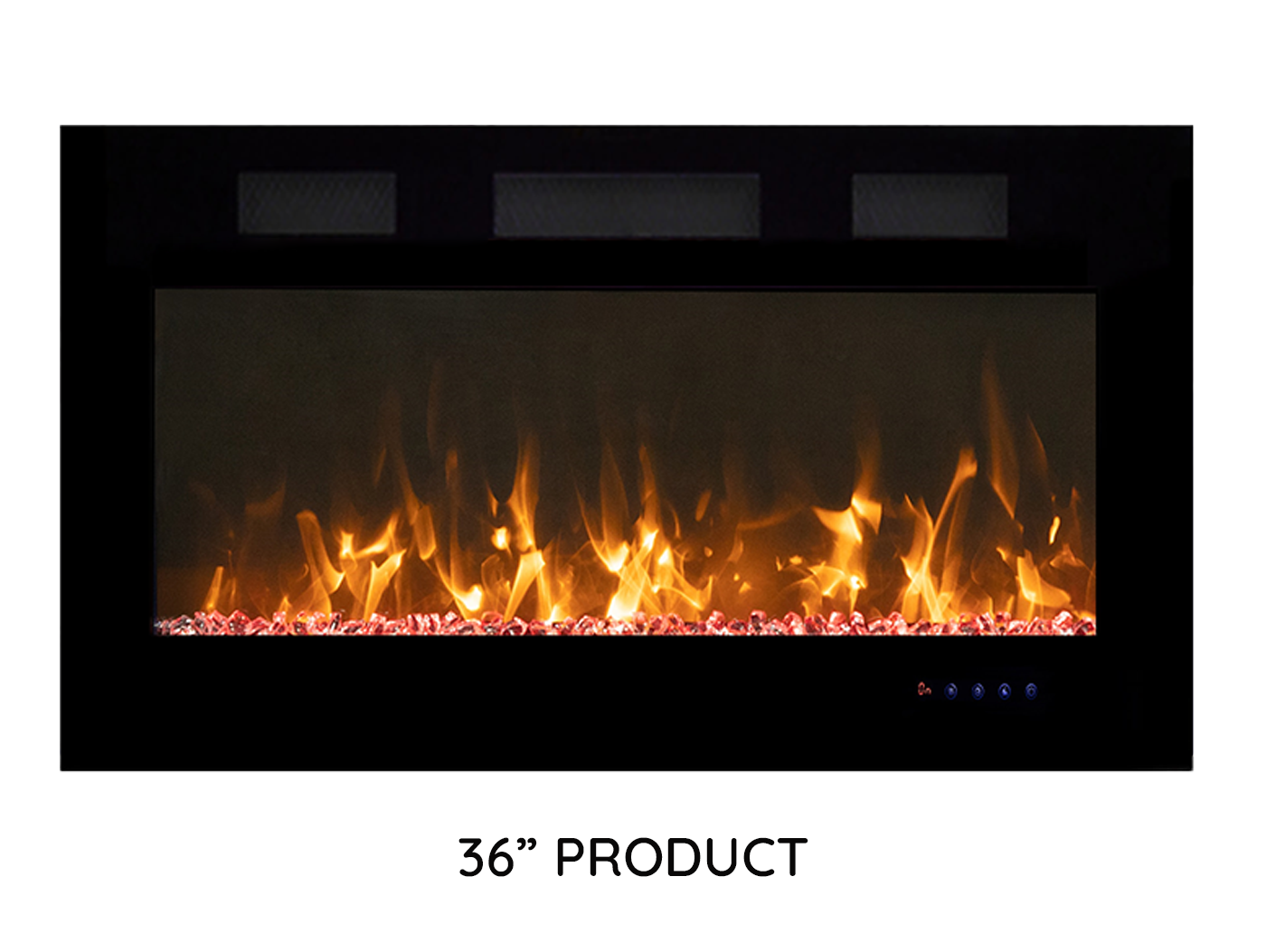

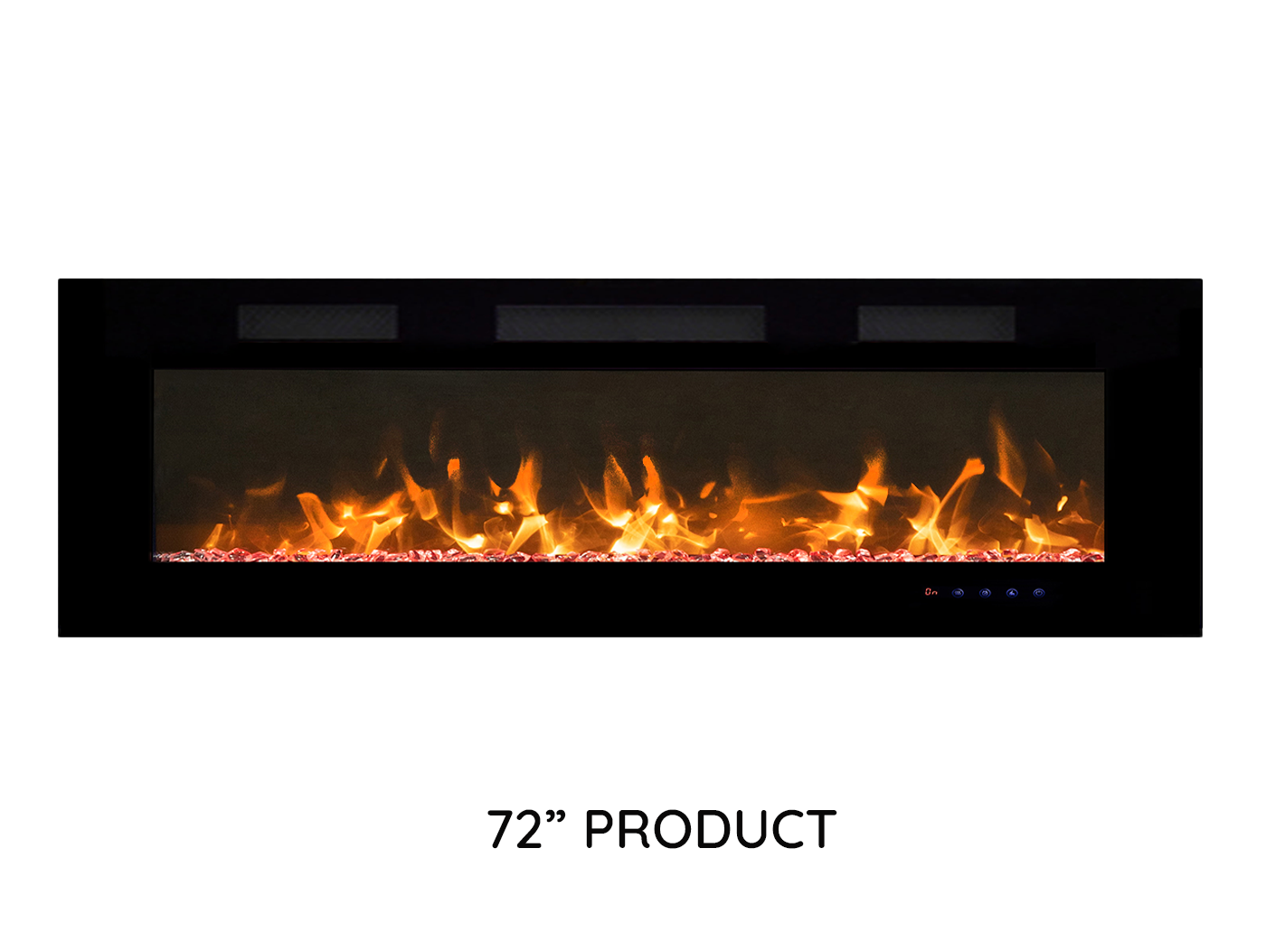

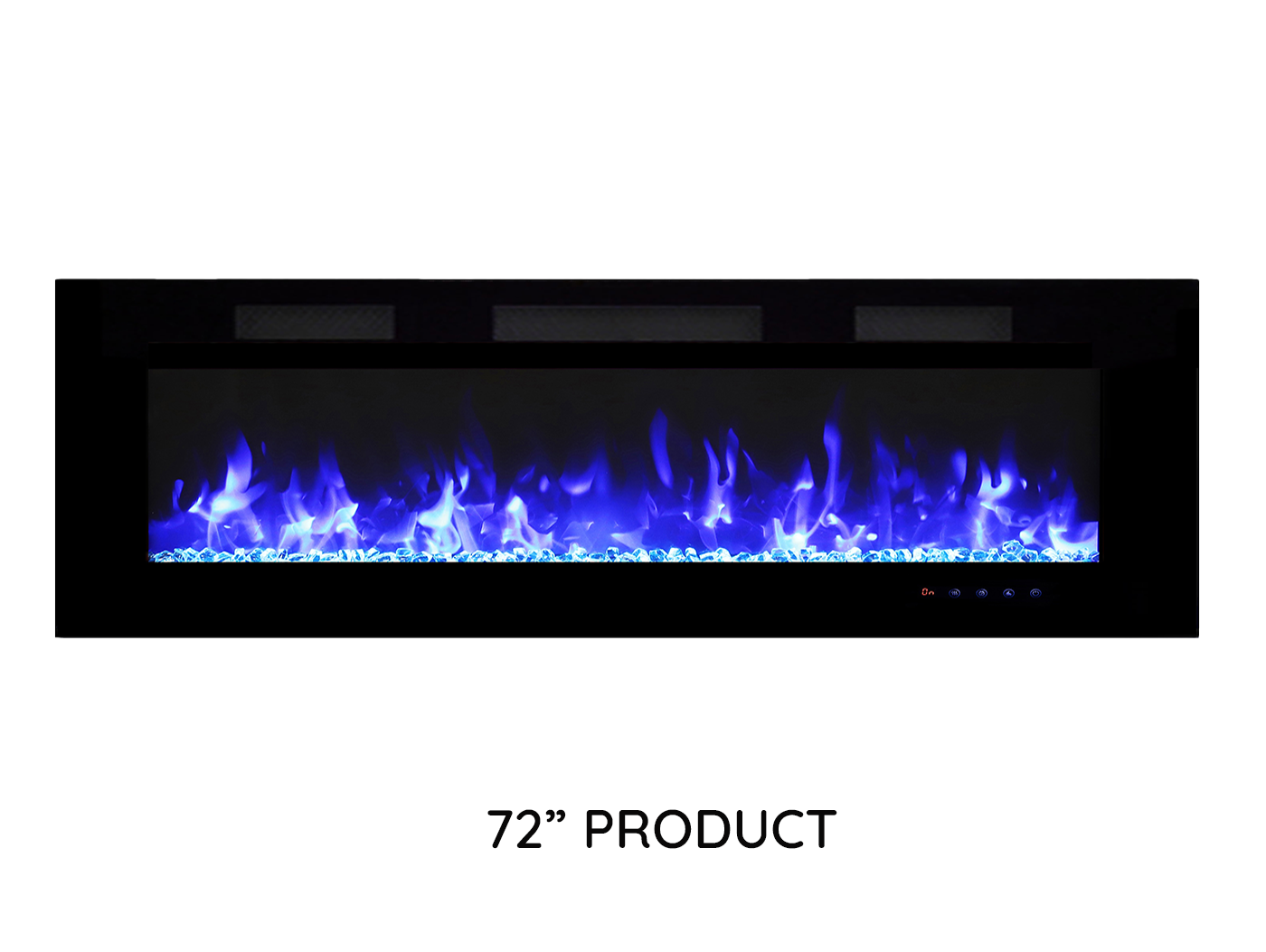

Sottile Series Ultra Slim Recess Built In Linear Fireplaces

Sottile Series Ultra Slim Recess Built In Linear Fireplaces

ELECTRIC FIREPLACES > LINEAR SERIES

 •Top venting electric fireplaces keep your home warmer, increase efficiency, and reduce the amount of wasted energy.

 •Total is two venting holes, the top one is the air outlet for heating other for the air inlet.

 •There is 3 color model for your option, black color brings a sense of elegant style to your space; white color is easy to match with your light color furniture; red color can quickly catch people’s eyes

DIMENSIONS


Sottile Series Key Features
Ultra slim 4" depth front venting linear electric fireplaecs
Front venting fully recess
All season usage: flames operate with or without heat output
Main Dimensions
Depth with front glass 4.2"
Back Firebox depth4"
Back Firebox width30.1"/ 36.1"/ 44.1"/ 54.1"/ 66.1"/ 78.1"
Back Firebox height18.8" for 36"/ 42"/ 50"/ 60"

20.27" for 72"/ 84"

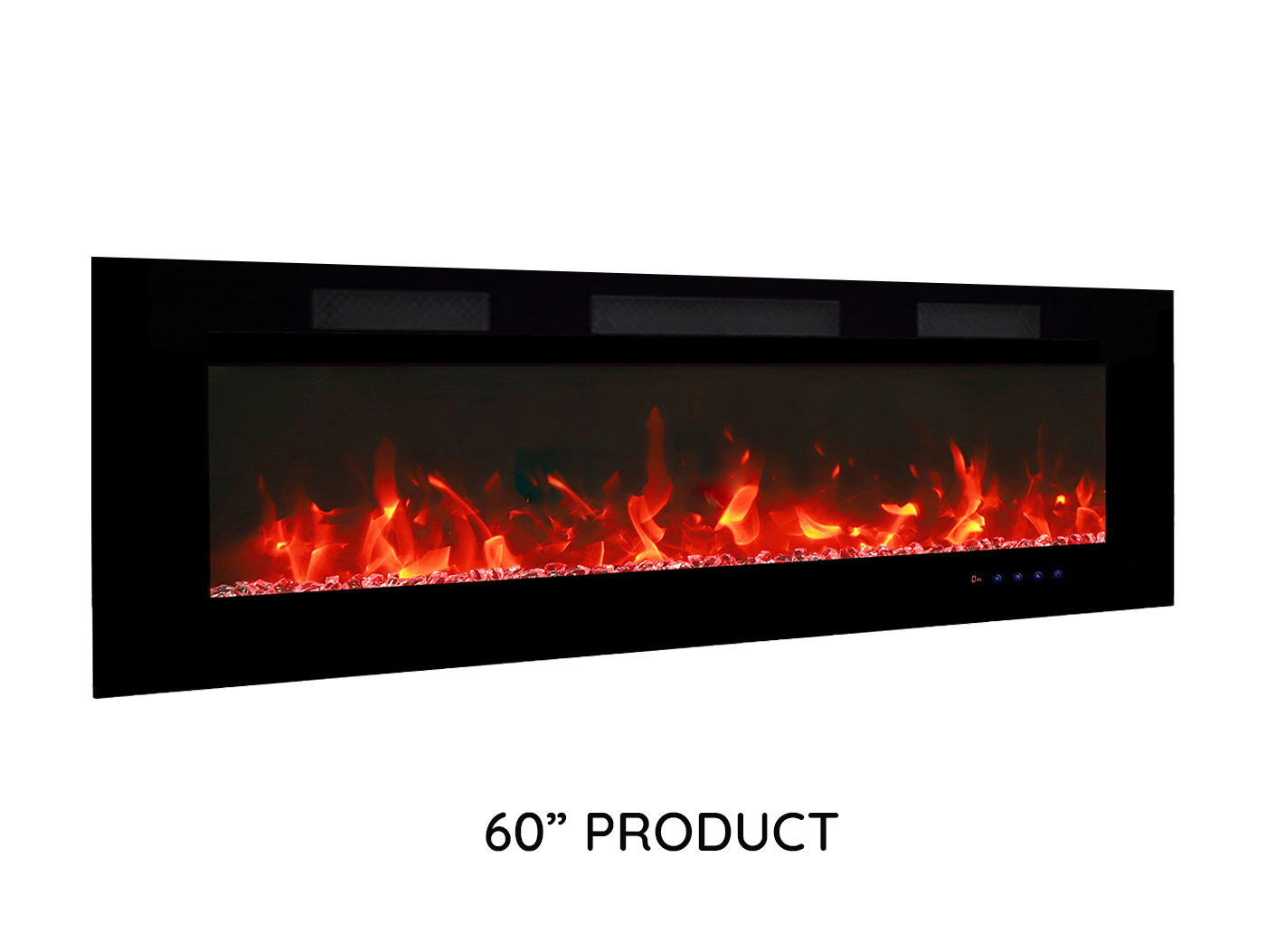

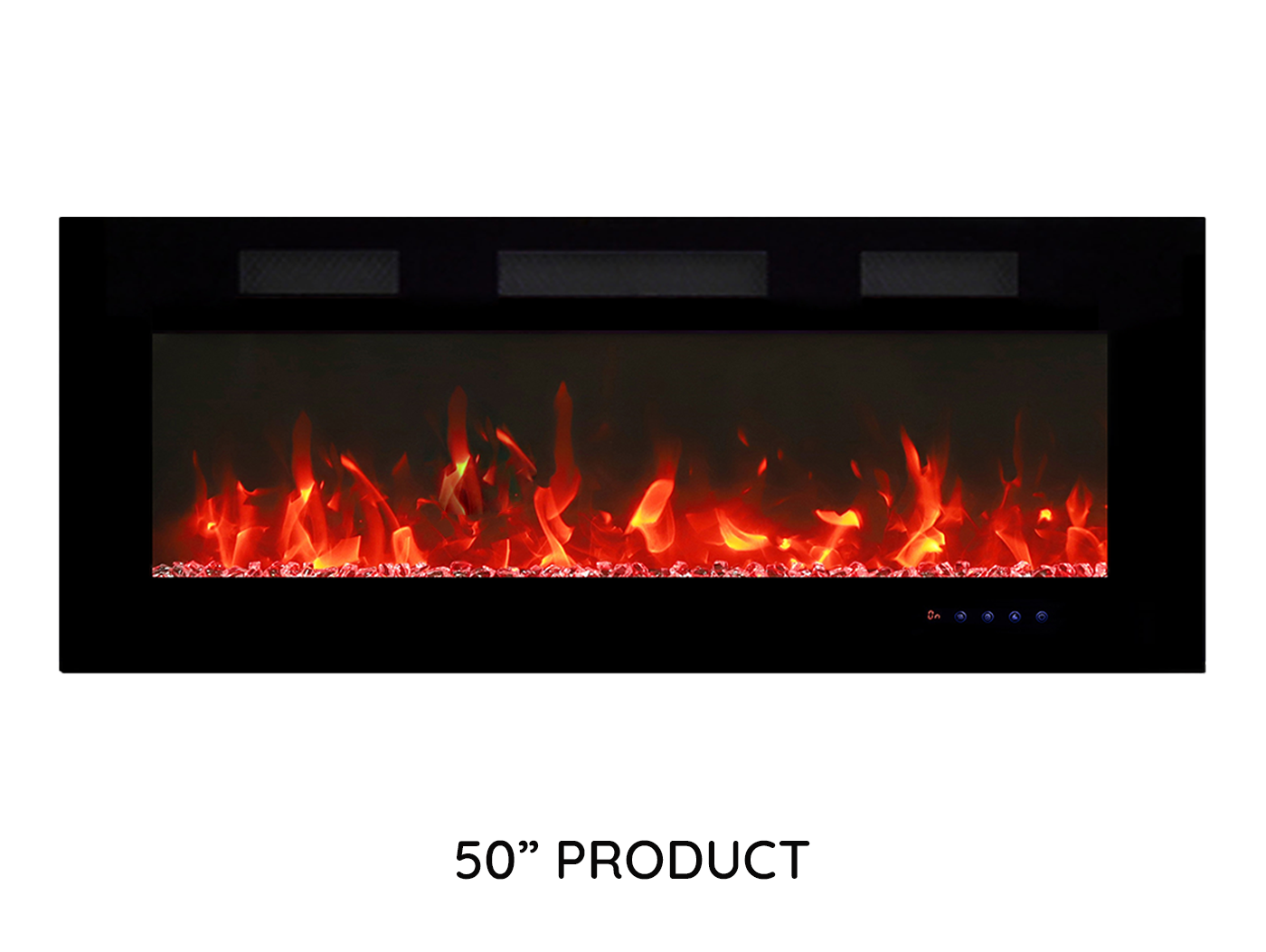

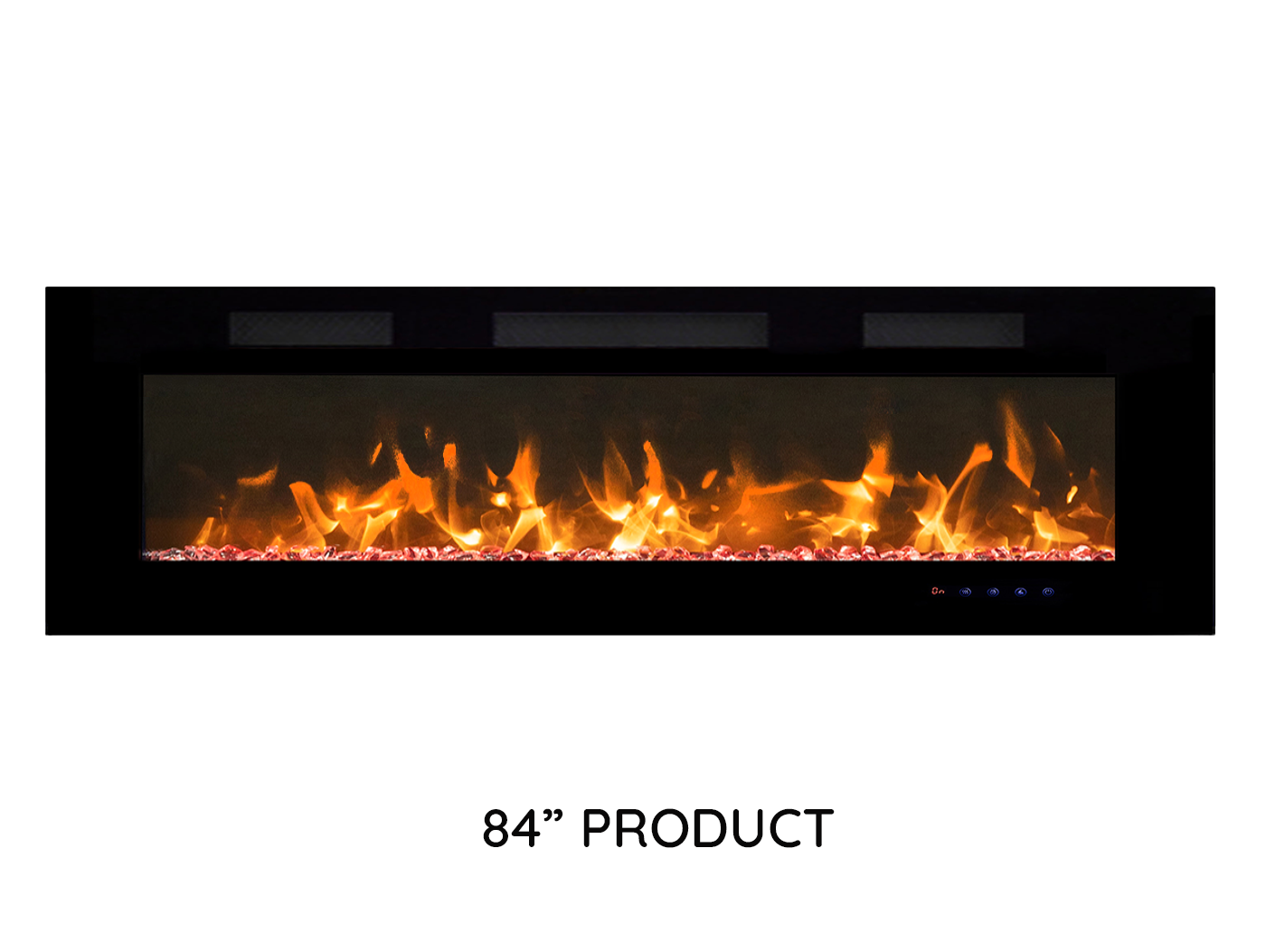

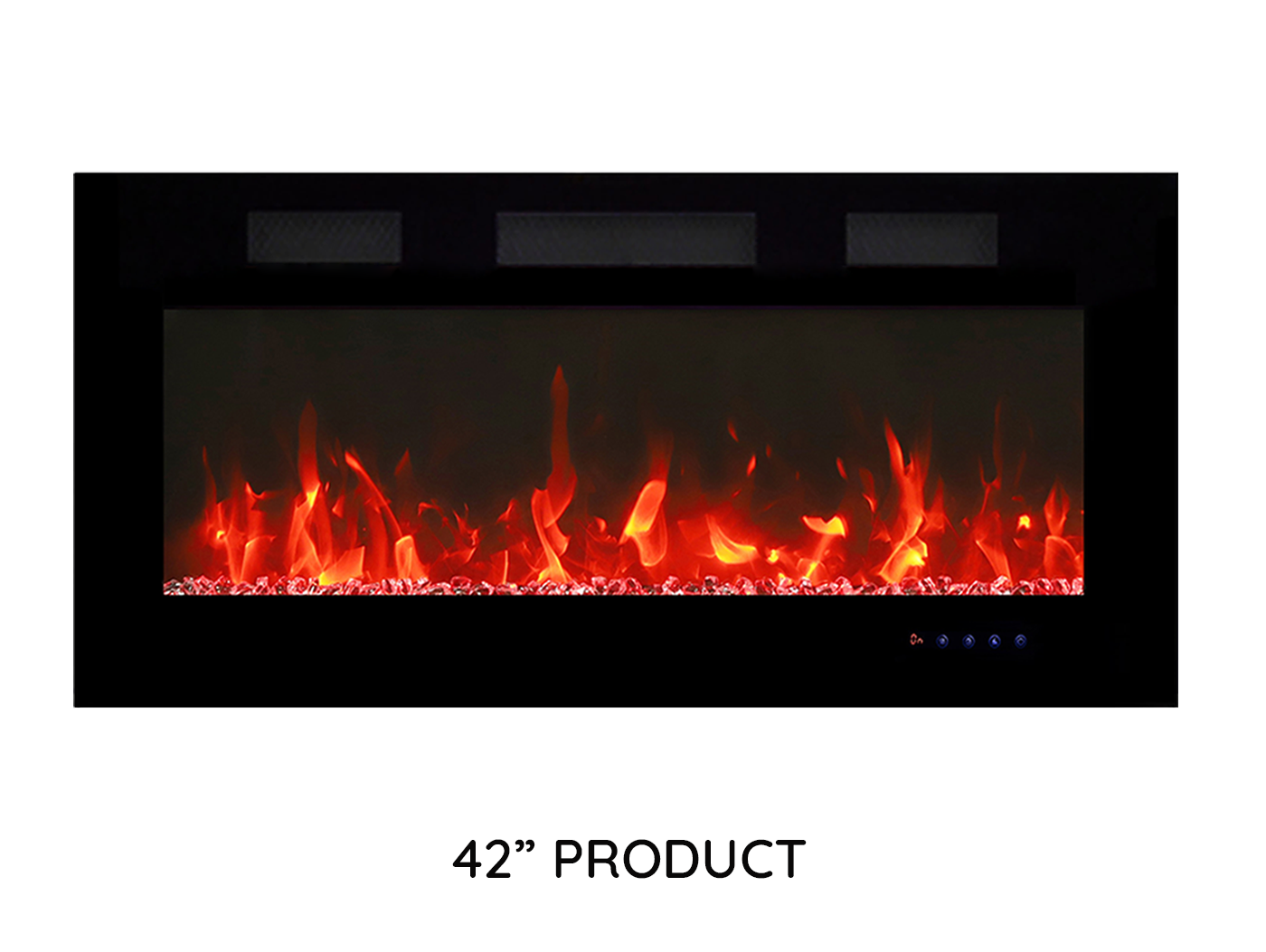

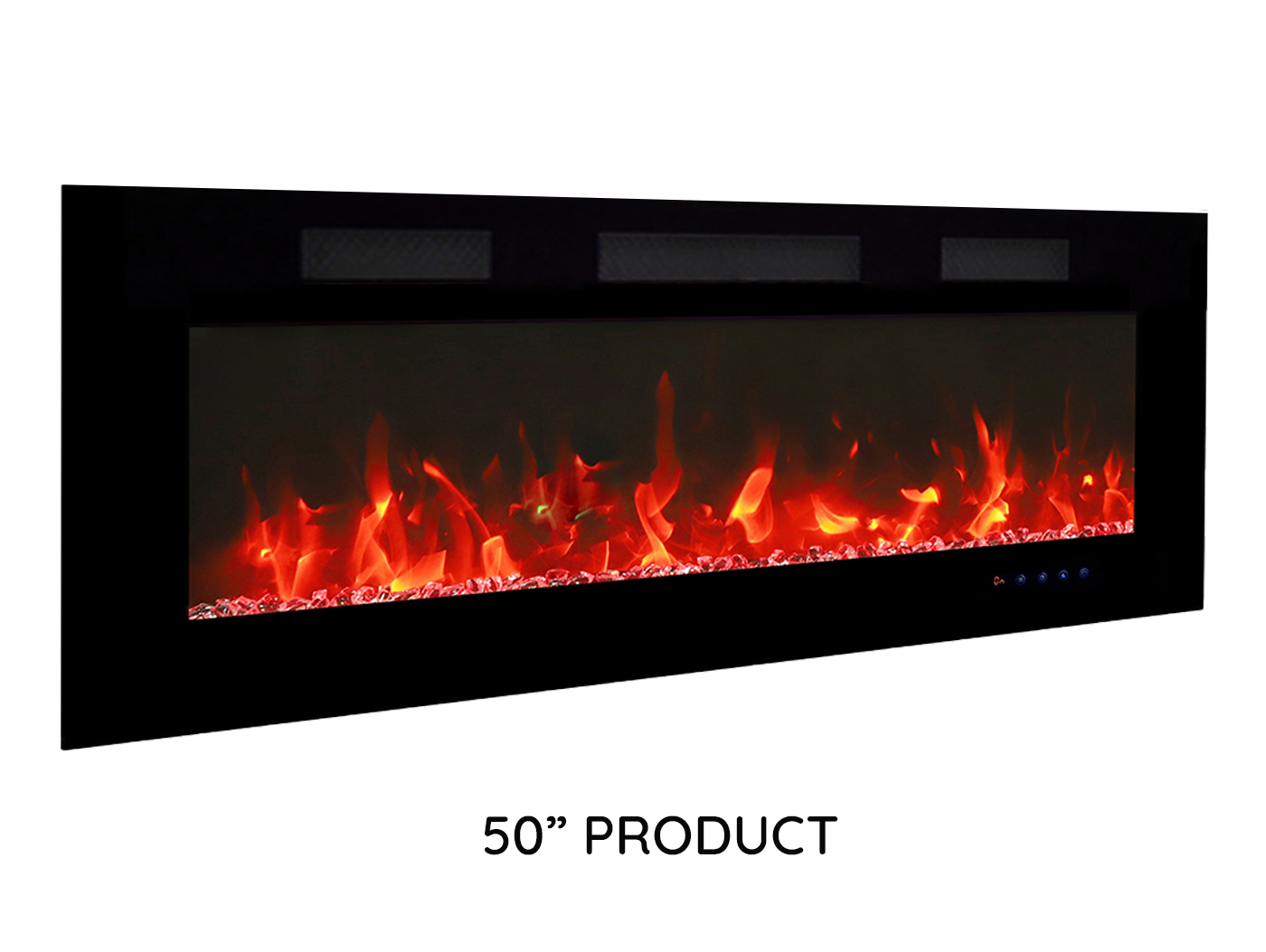

Front Width36"/42"/50"/60"/72"/84"
Front Height20" for 36"/ 42"/ 50"/ 60"

23 1/4" for 72" and 84"
Ember bed depth3/4"
View area height9 1/4 " for 36"/ 42"/ 50"/  60"

10" for 72" and 84"
View area width26"/ 31.91"/ 39.72"/ 50"/ 60"/ 72"



PRODUCT DIMENSIONS
Model#ABCDEFG

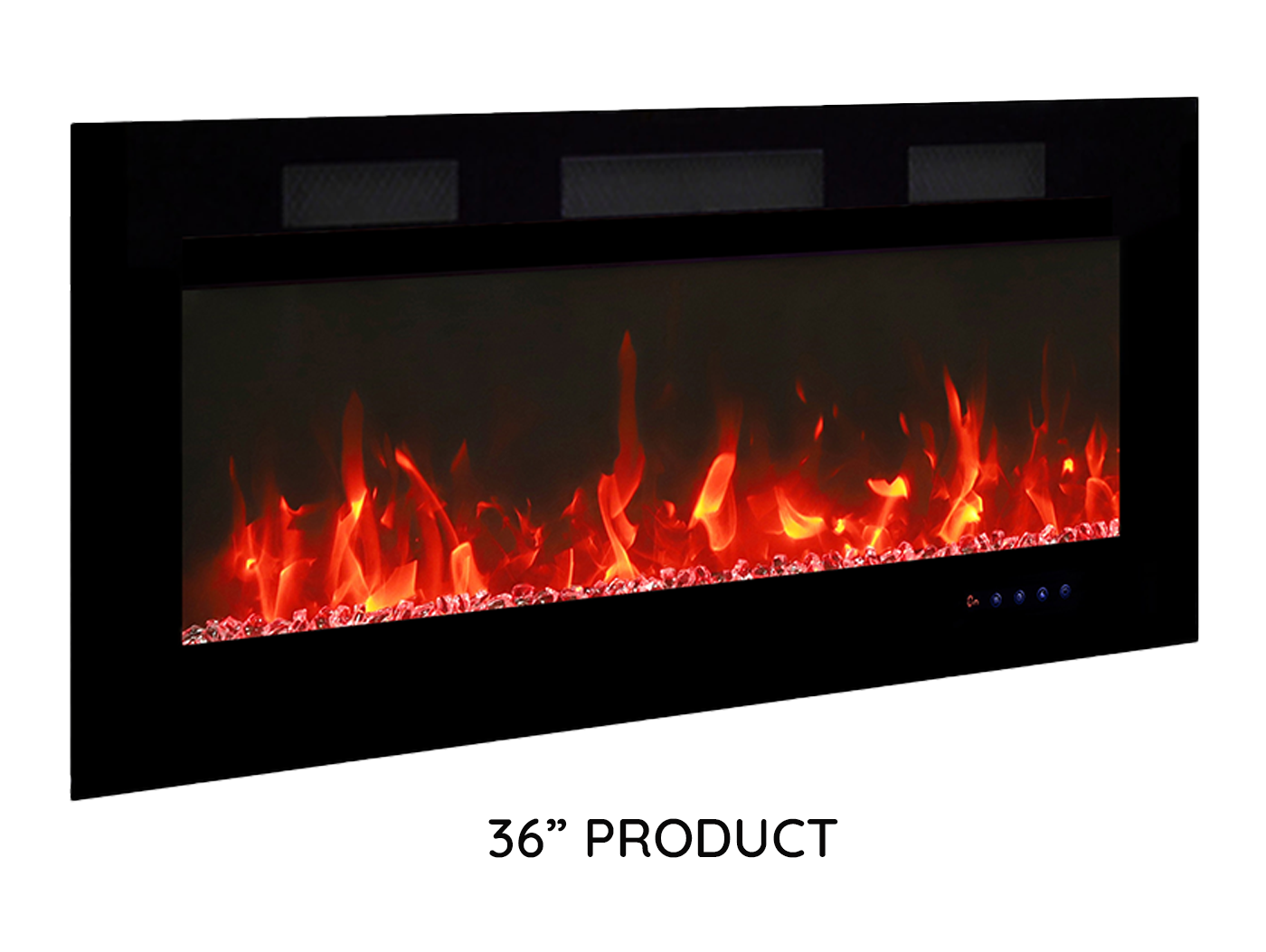

SS36FV3FBL36''20''4.2''18.8''30.10'''9.72''26''
SS42FV3FBL42''20''4.2''18.8''36.10''9.72''31.97''

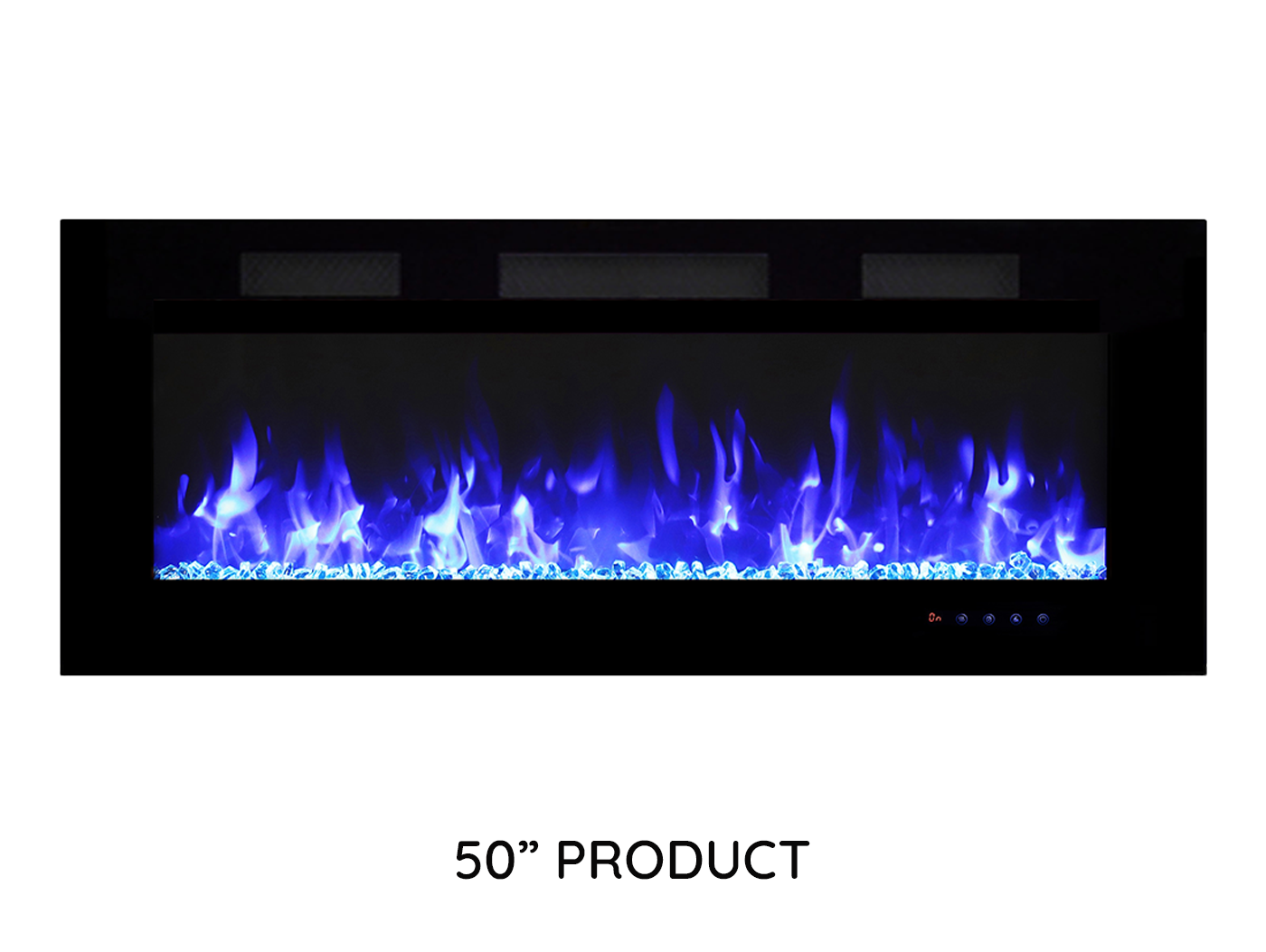

SS50FV3FBL50''20''4.2''18.8''44.10''9.72''39.72''
SS60FV3FBL60''20''4.2''18.8''54.10''9.72''50''

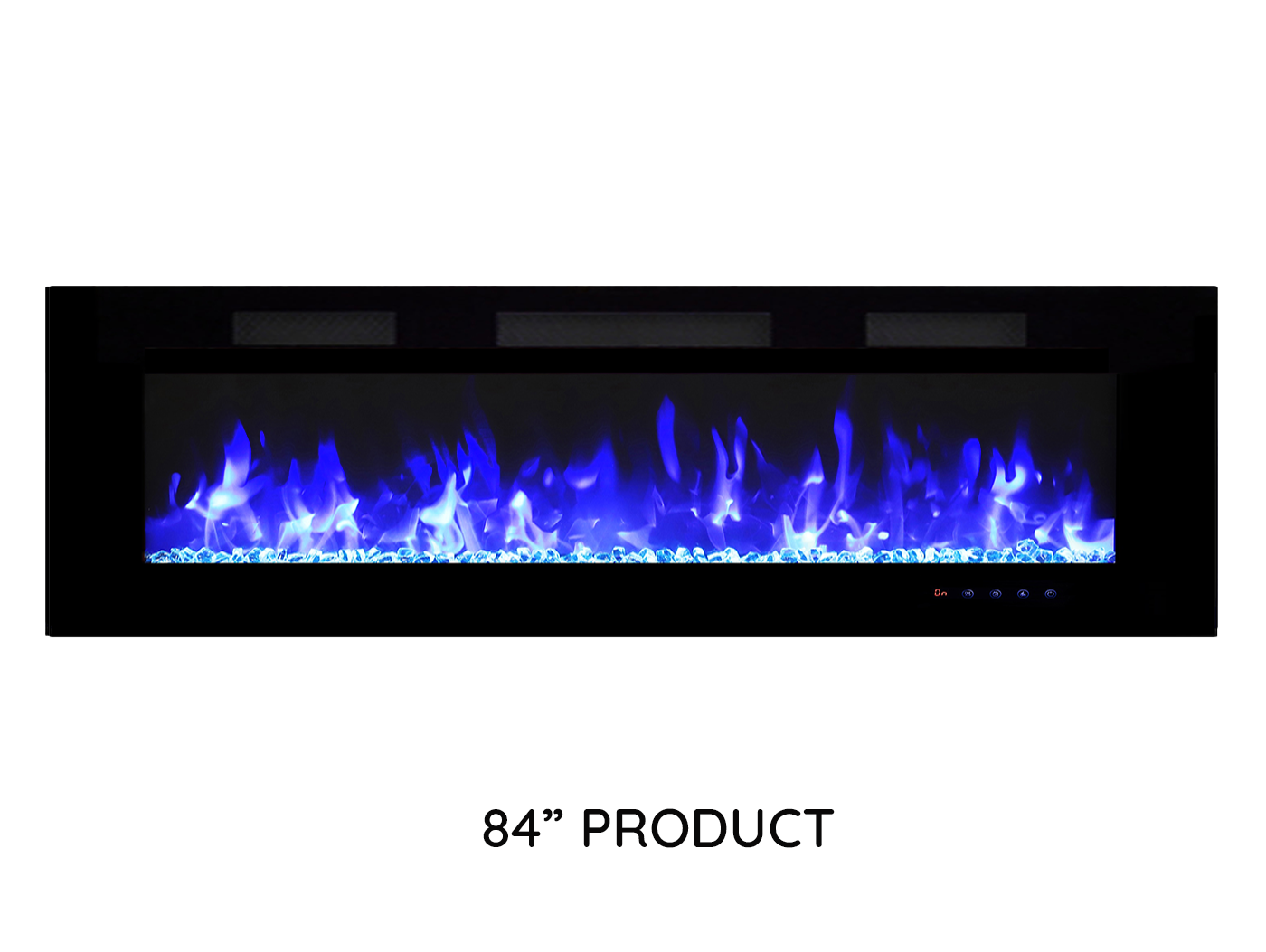

SS72FV3FBL72''23.25''4.2''20.27''66.10''10.24''60''

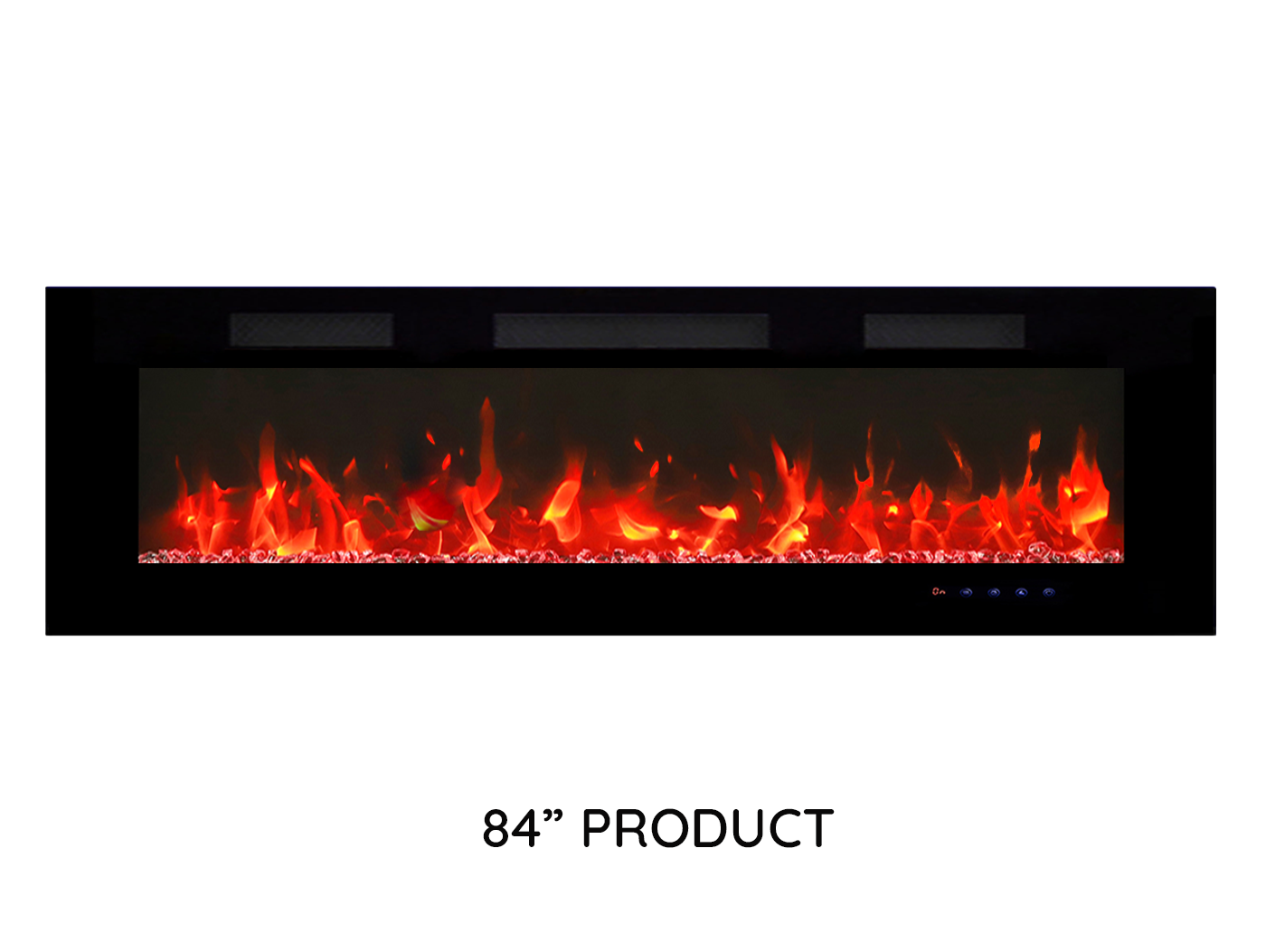

SS84FV3FBL84''23.25''4.2''20.27''77.10''10.24''72''

width fv.png

Fireplace Type:

Front-View
Available Models:36, 42, 50, 60, 72, 84
Depth:

4.2” including the front glass

4” firebox


SPECIFICATIONS



Technical Specification

Product Finish

Black

Heater Wattage

1500W

Voltage

120V

BTU

5000 BTU

Product Depth

5"

Product Height

20" or 23.25"

Product Weight

104.12 LBS

Timer

1

Remote Control

Yes

Built-in Thermostat

Yes

Automatic Shut-off

Yes

Power Souce

Electric

INSTALLATION


Easy-to-use builder's brackets provided for 3 install options:

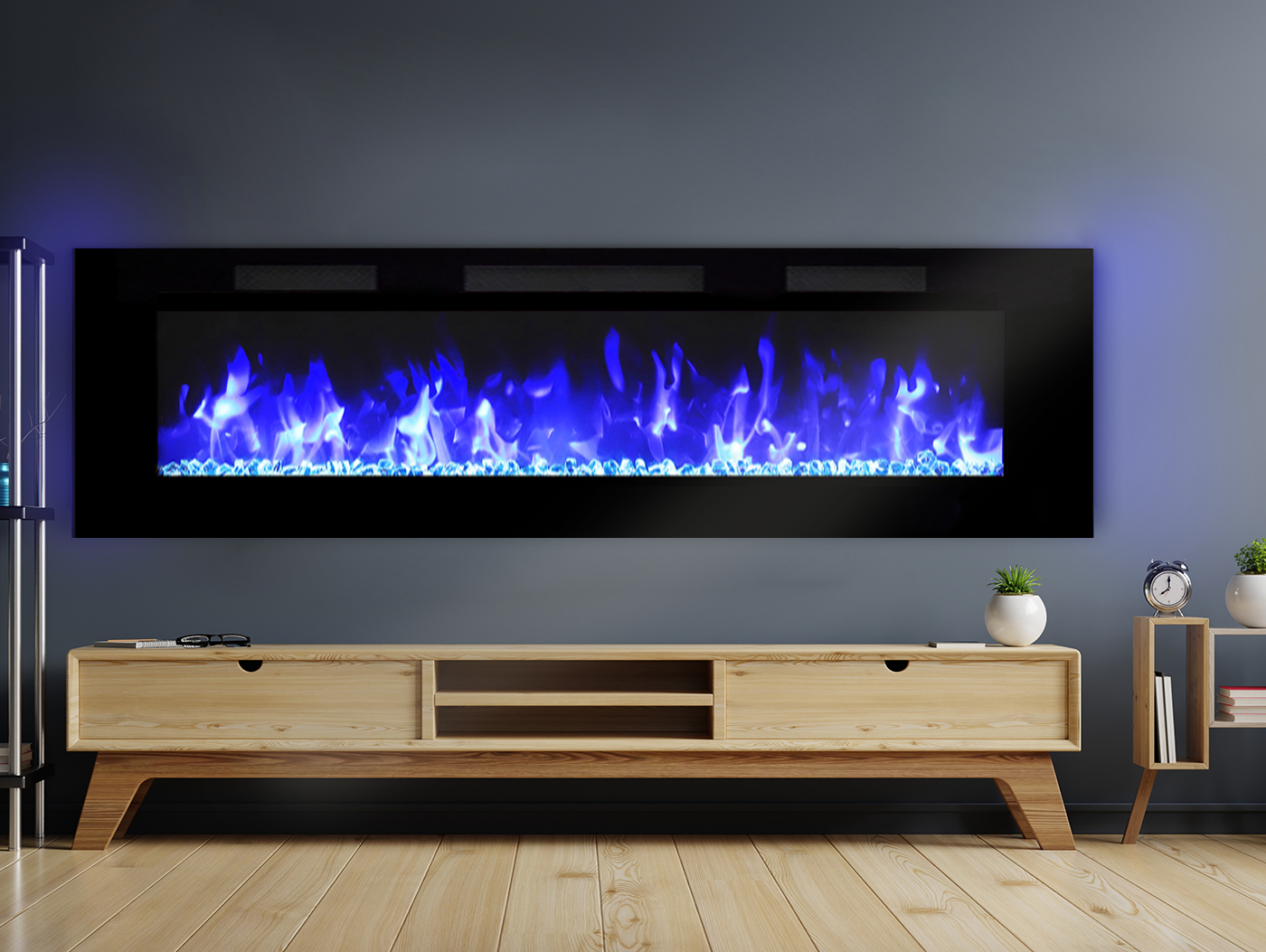

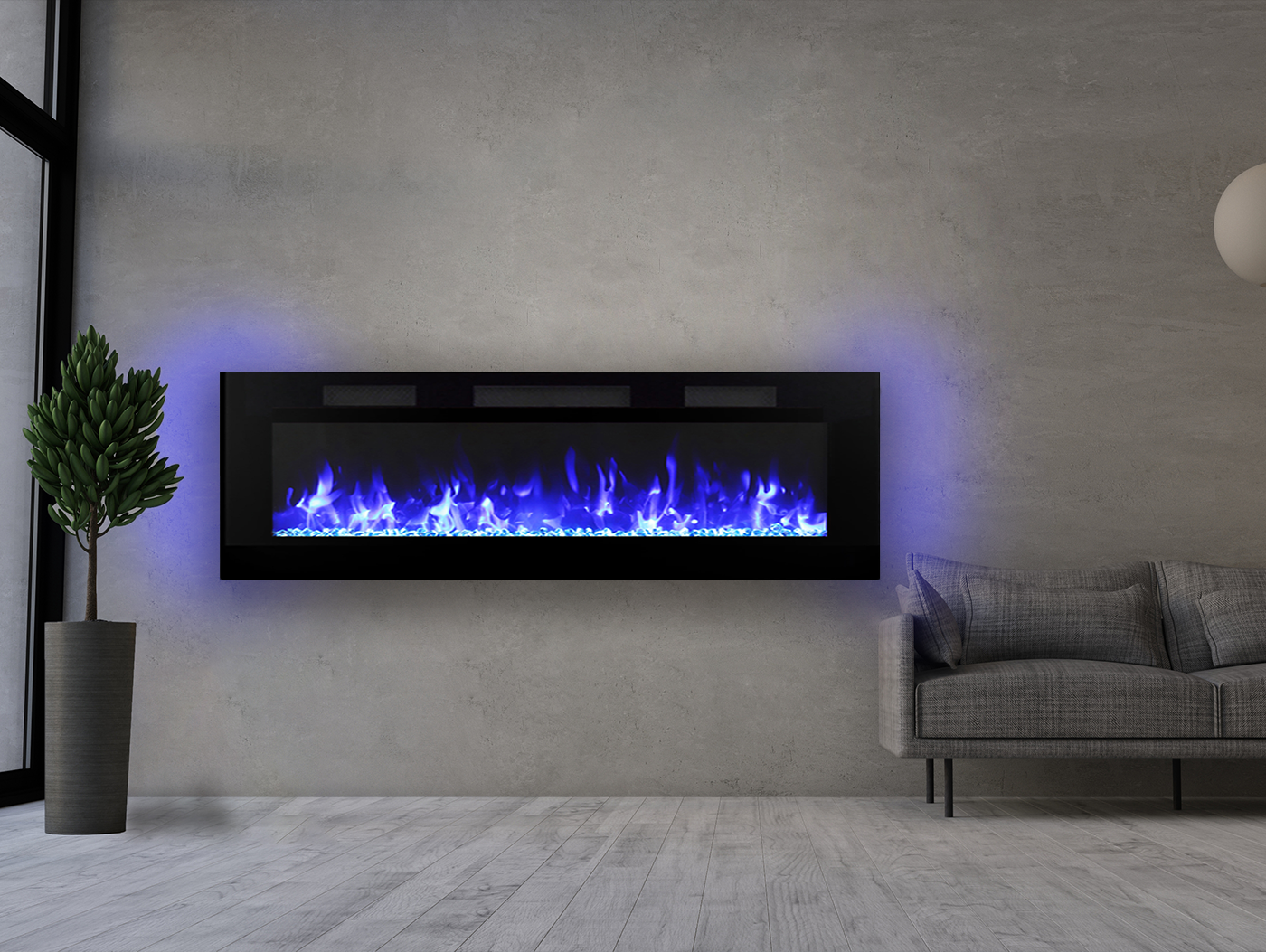

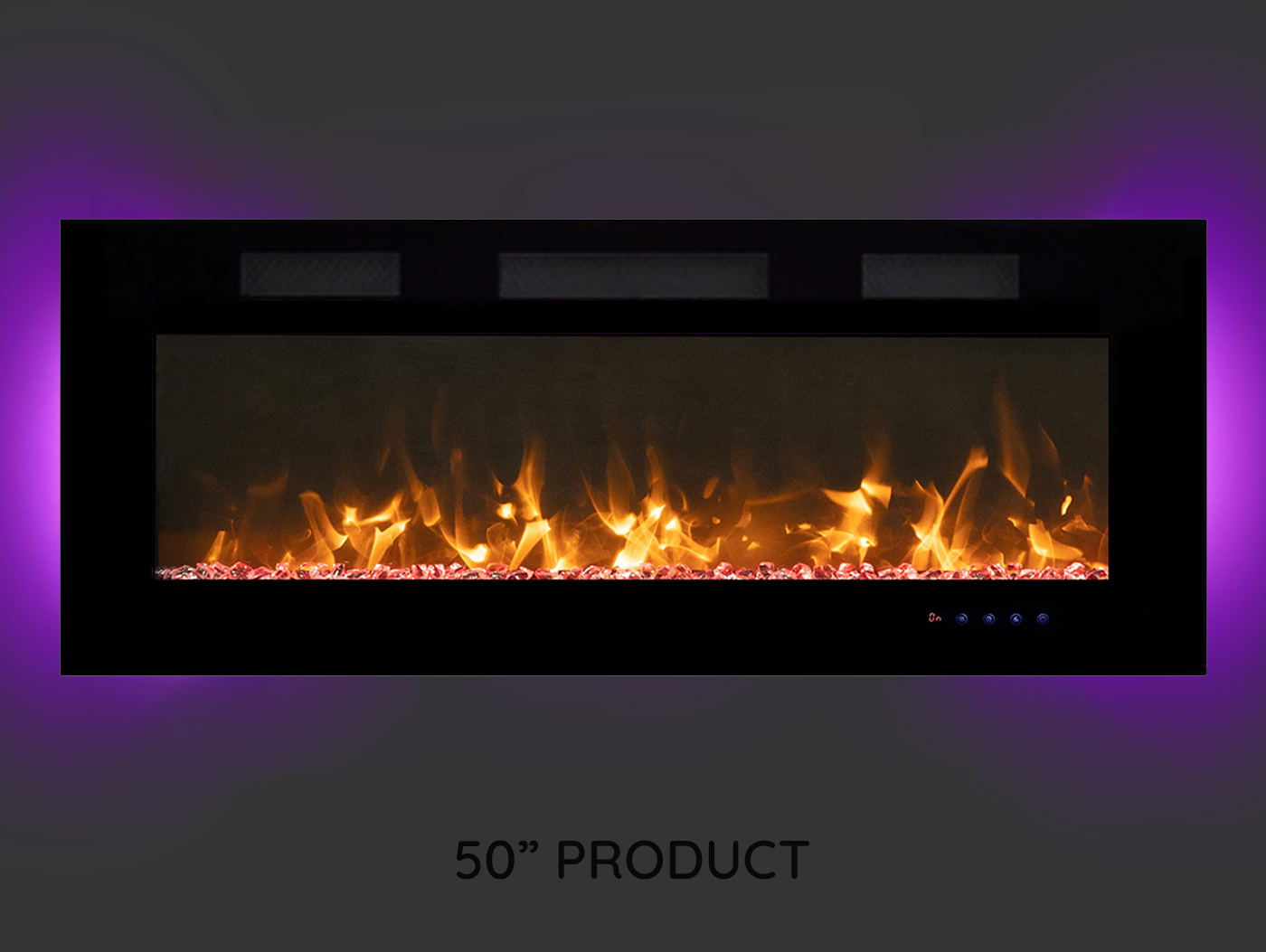

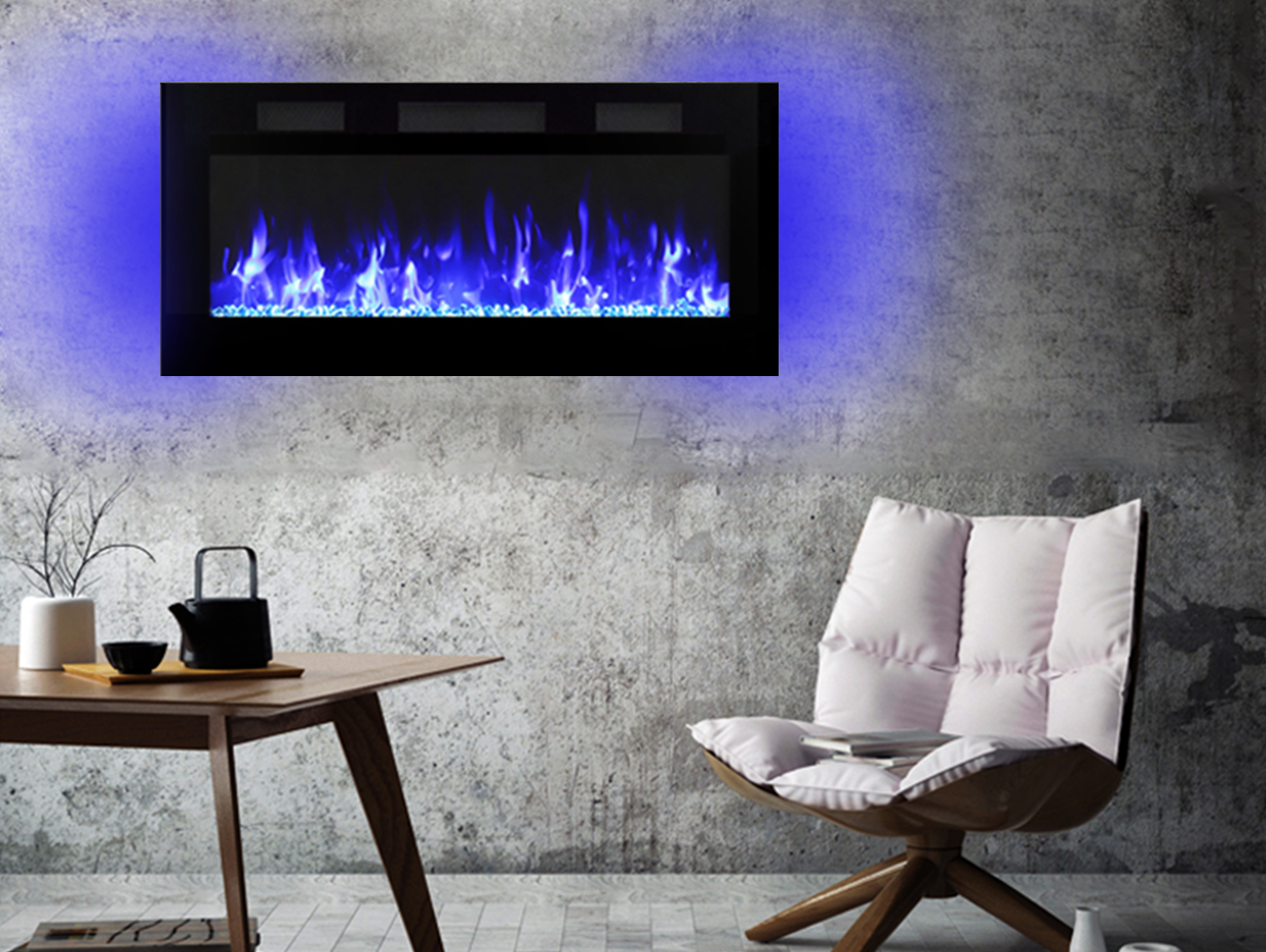

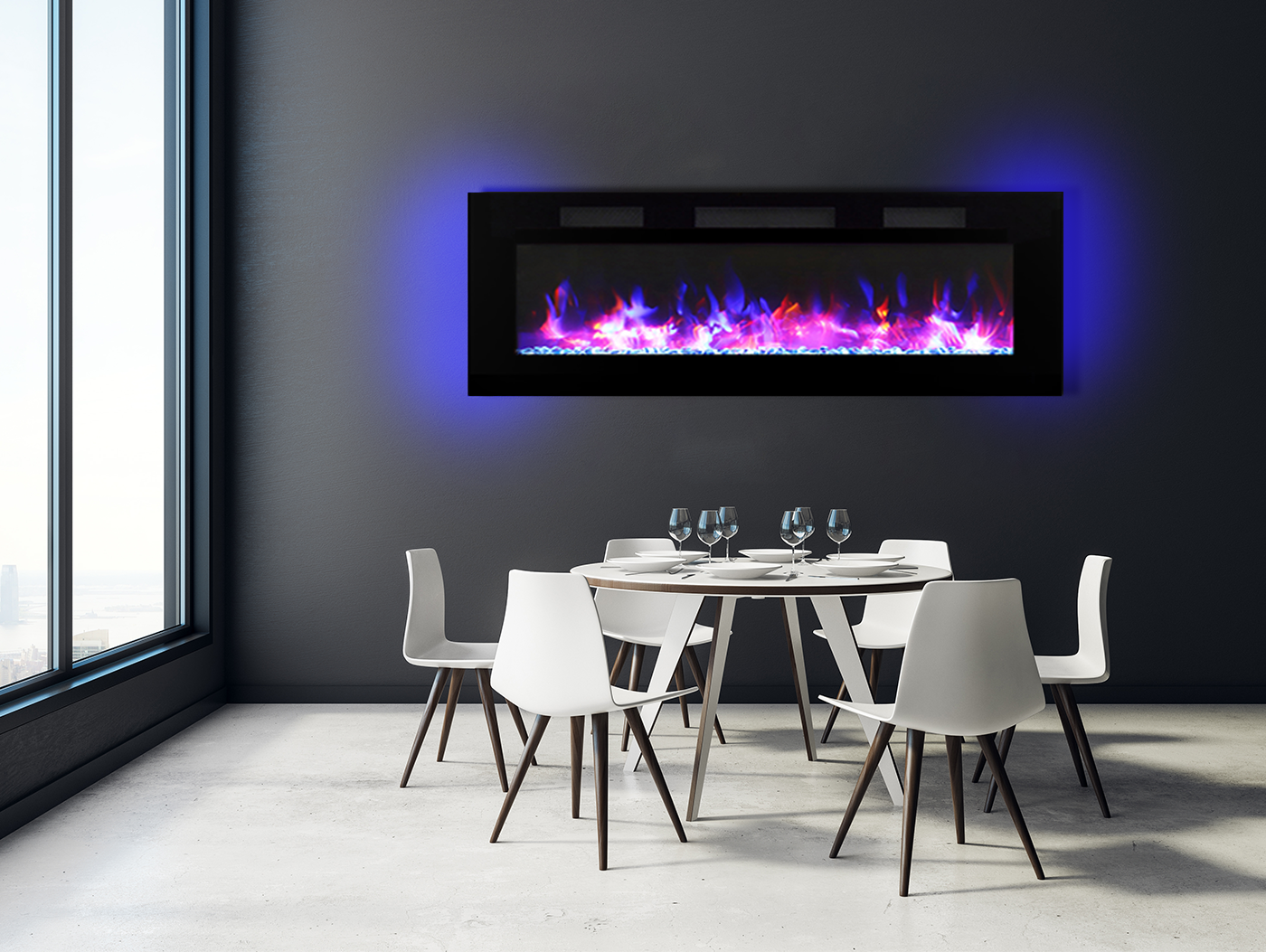

1. Wall Mounted: Use with backlights

2. Partial Recess: 1"gap for flexible use

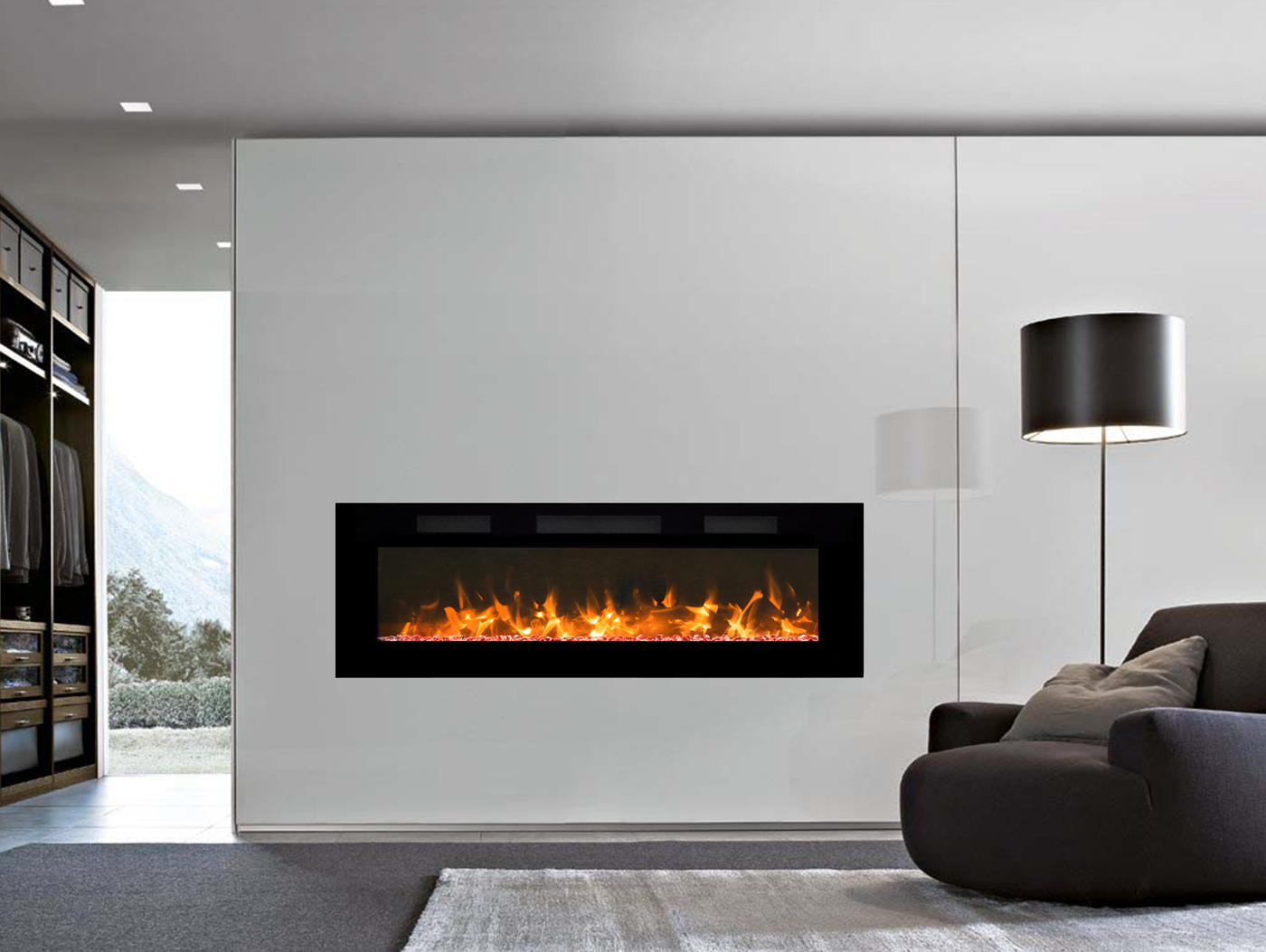

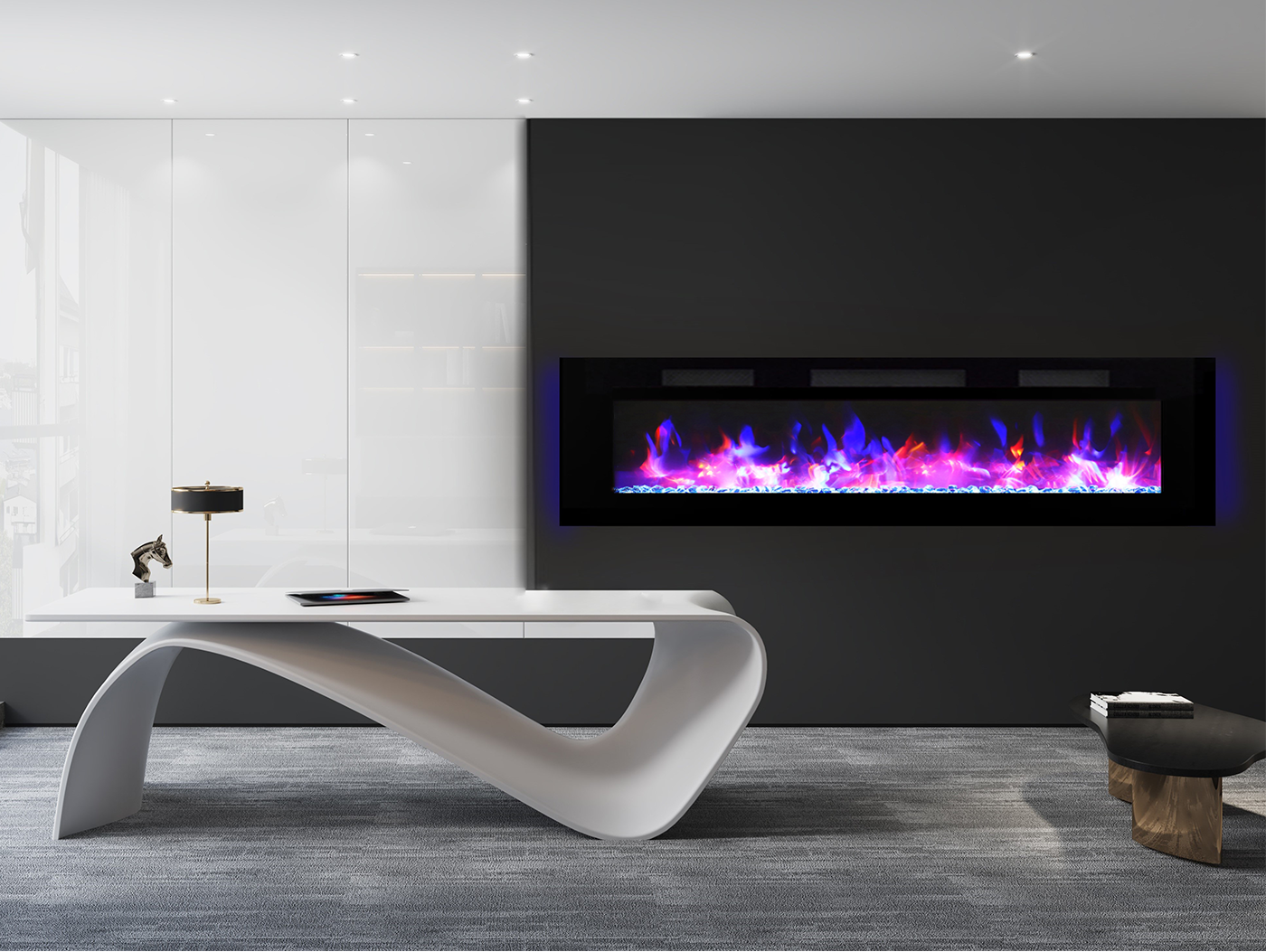

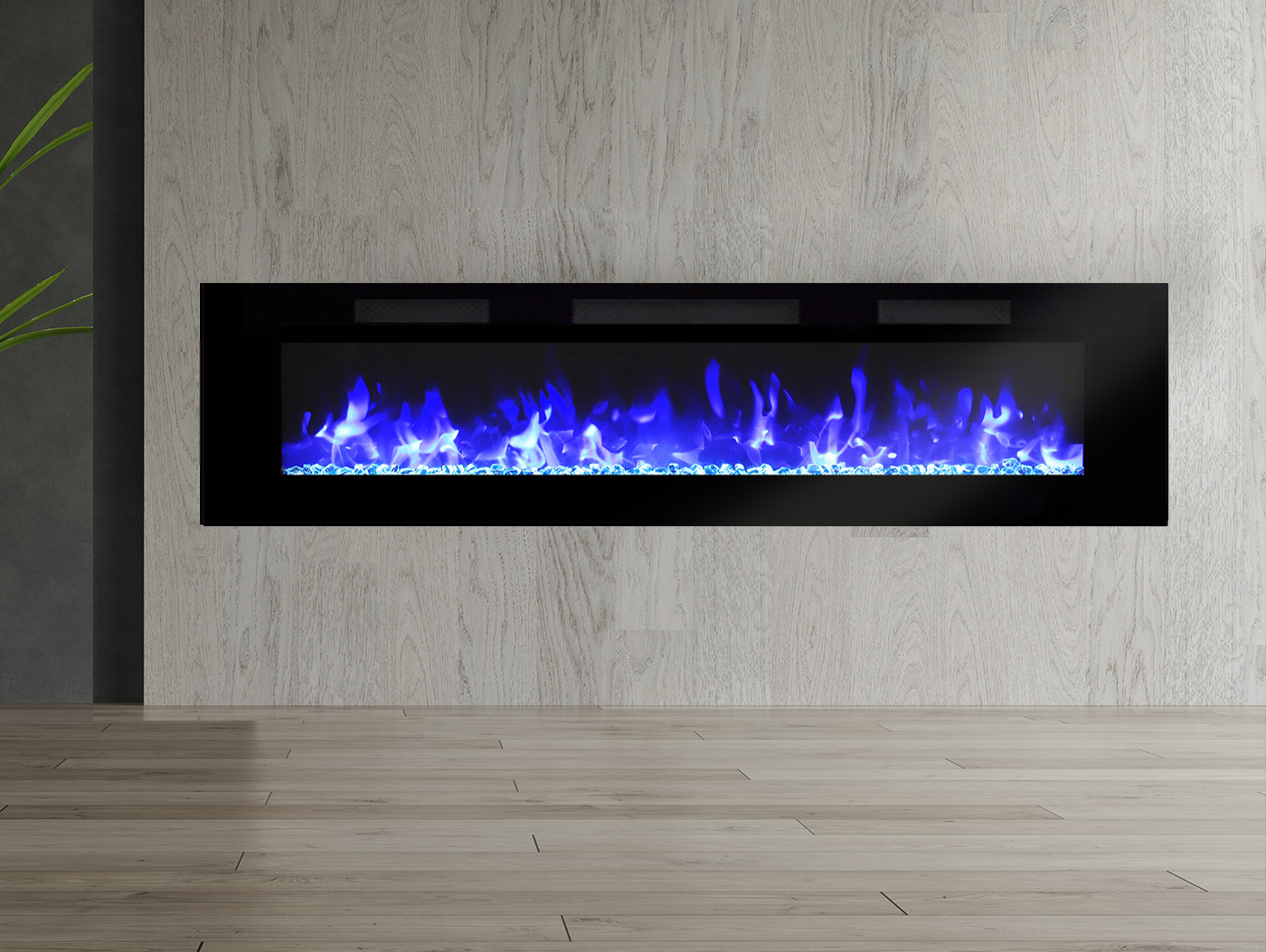

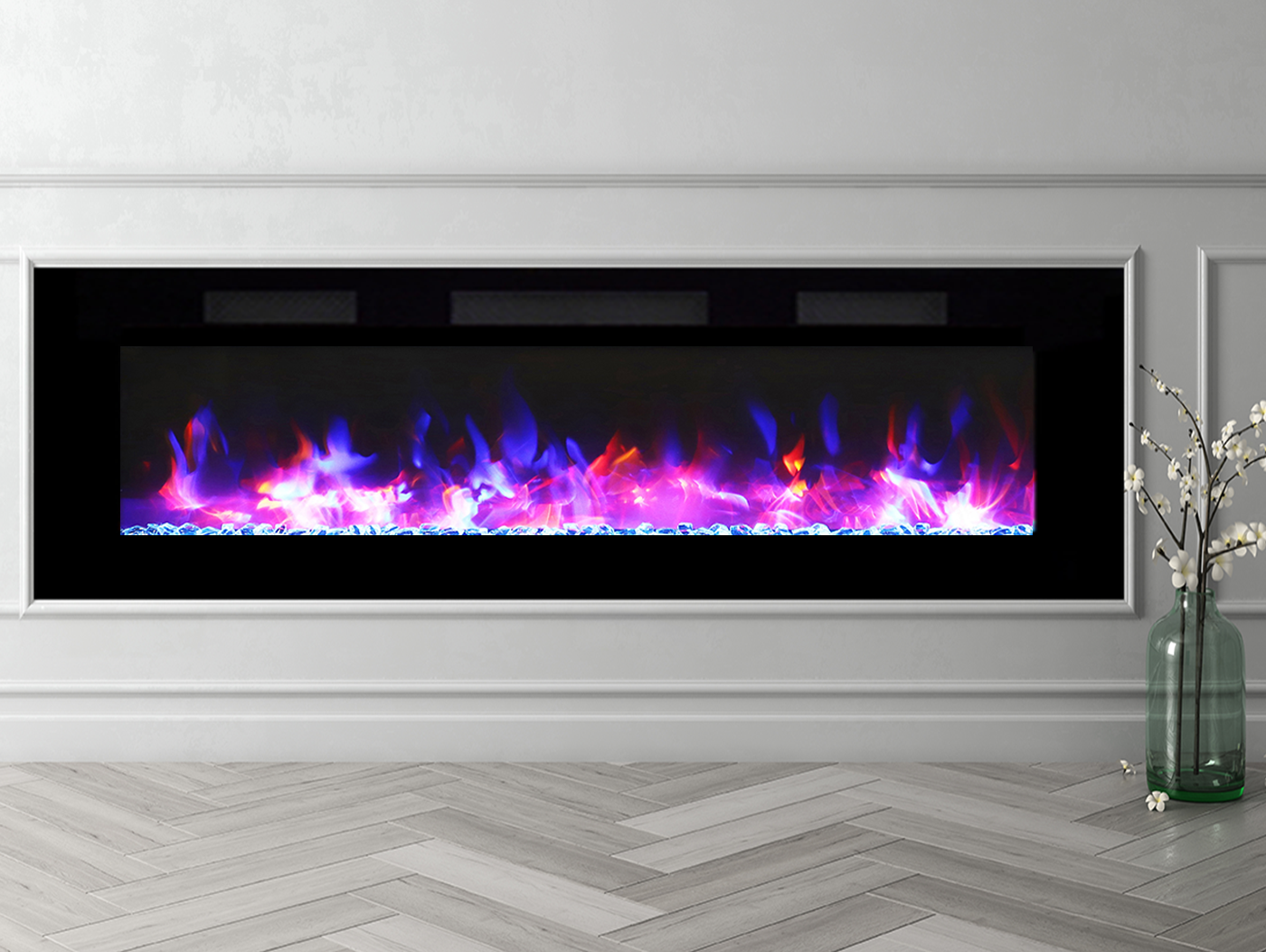

3. Full Recess: Flush to wall

INSTALLATION
YESRecess Wall Mount only 0.2' from the wall

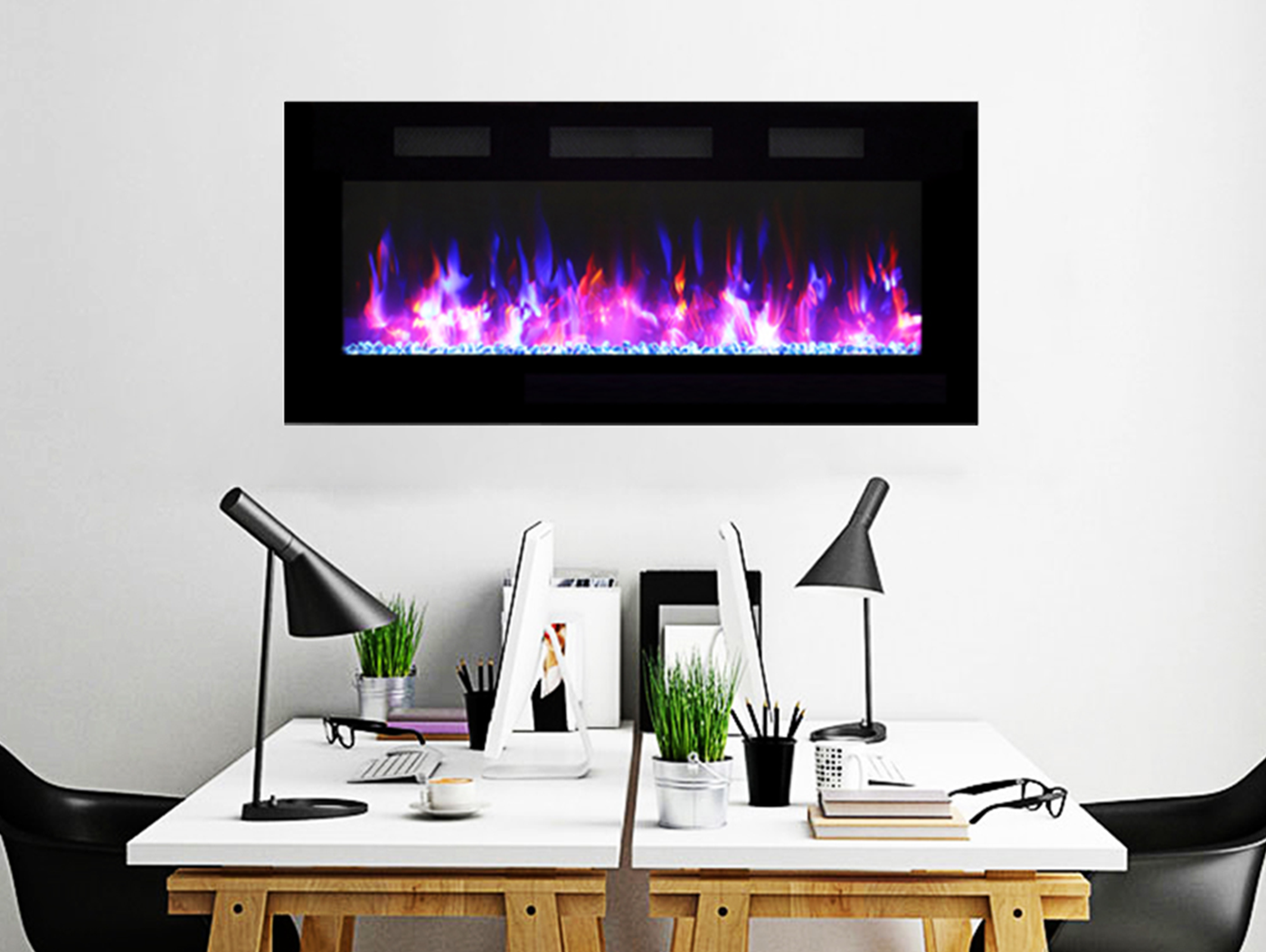

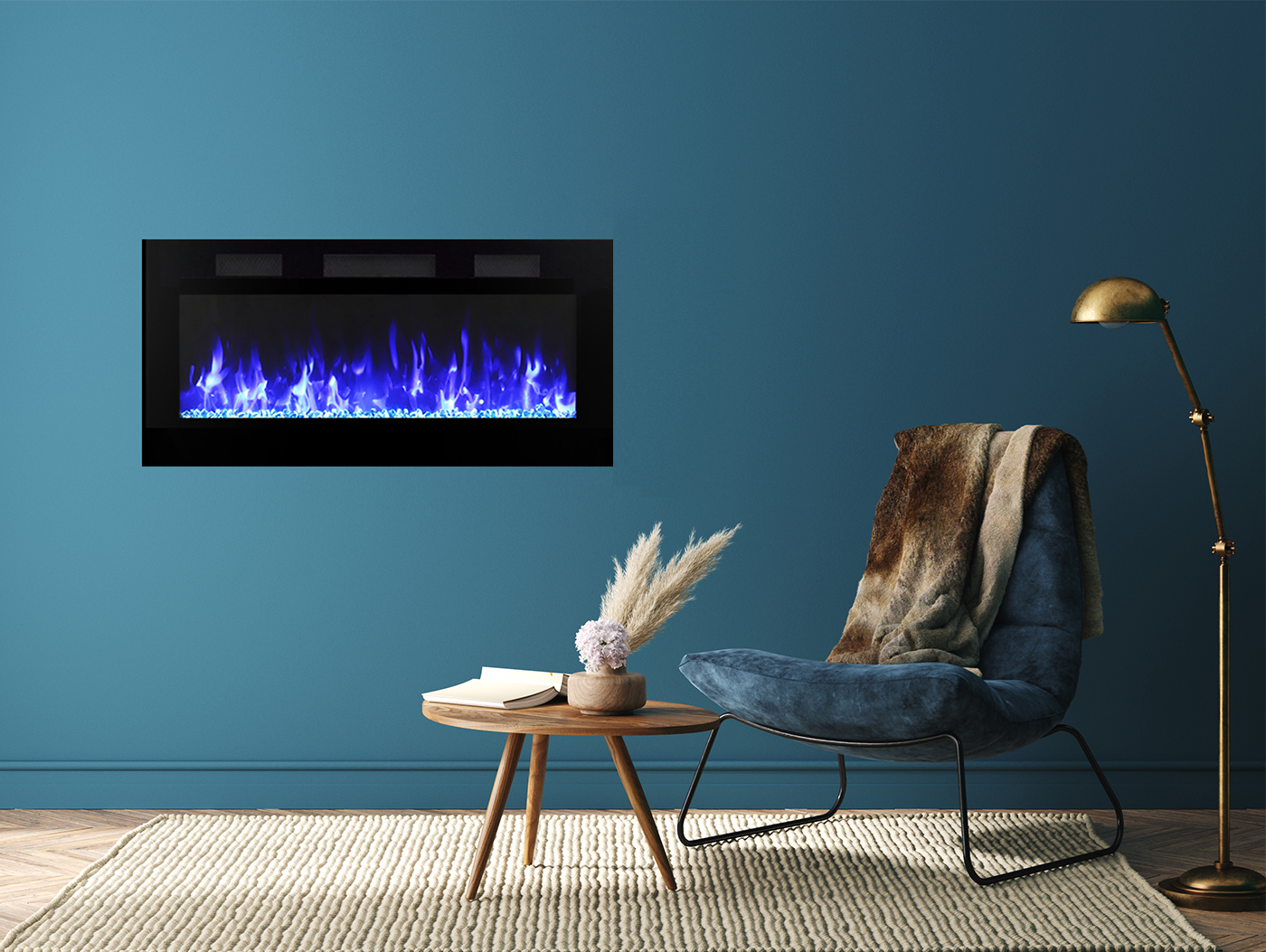

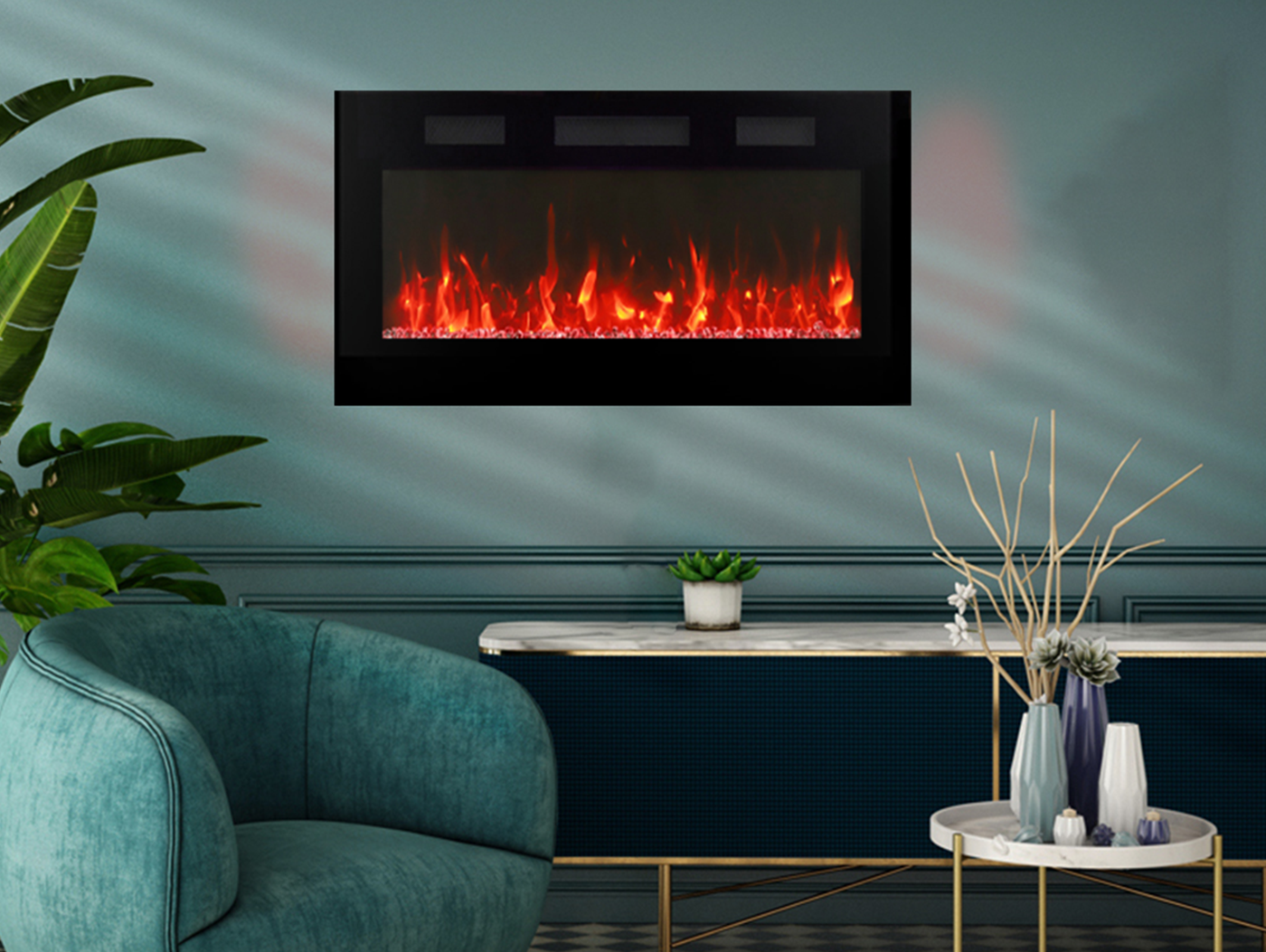

YESWall hanging

Built in Clean face


ELECTRICAL
Heater1500W/5000BTU

Up to 10,000BTU's &3,000 Watts
Heater wire optionYes
Plug inYes



installation 3.png



PLACE THE FIREPLACE RECESSED IN-WALL:

If using the below dimensions for a recessed in-wall installtion,please follow these measurements exactly to ensure a correct fit and proper coverage of the finished wall edge.


installation 2.png



Item#AB
SS36FV3f8L19.3''32.60''
SS42FV3f8L19.3''38.60''
SS50FV3f8L19.3''46.60''
SS60FV3f8L19.3''56.60''
SS72FV3f8L21.27''68.60''
SS84FV3f8L21.27''79.60''
